FC6L/0B-1204-1F
MICRO DETECTORS
1

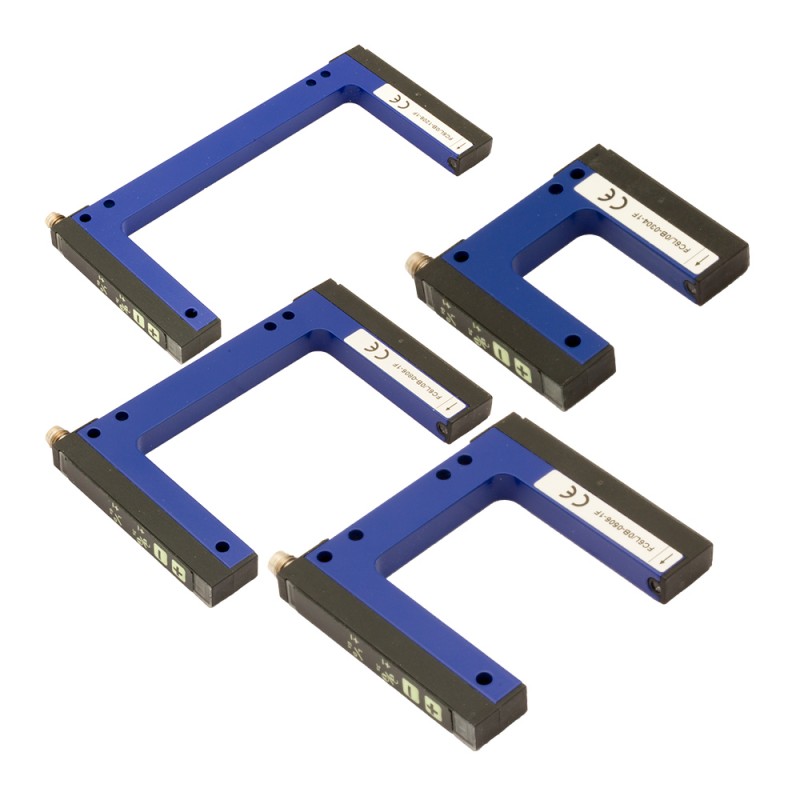

Slot 120mm width 42mm depth, with adjustment, Laser PNP/NPN M8
FC6L/0B-1204-1F Slot 120mm width 42mm depth ADJ Laser PNP/NPN M8
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Nominal sensing distance | 120mm | |
minimum detectable object | 0.05mm | |
Sensitivity adjustment | Yes |
Output type | NPN - PNP | |
Output Function | LO/DO selectable | |
Switching frequency | 10kHz |
Operating Voltage | 12-24Vdc | |
No-Load supply current | 40mA | |
Load current | 100mA | |
Output voltage drop | ≤ 2V @ IL =100 mA | |
Max ripple content | ≤ 10% | |
Short-circuit protection | Yes | |
Reverse Polarity Protection | Yes | |
Emission | Red LASER 670 nm, modulated, class 1 | |
Interference to external light | 5000lux (incandescent lamp), 10000lux (sunlight) |
Dimensions | Width slot detection 120mm - Depth slot detection 42mm | |
Weight | 100g | |
Housing Material | Painted aluminium | |
Connections | M8 plug 4 pin | |
Active Head Material | Polyamide/glass | |
Operating temperature | - 20°C…+ 50°C | |
Storage temperature | - 30°C…+ 80°C |
Approvals | CEUL | |
EMC compatibility | EN 60947-5-2 | |
Degree of protection | IP65 (EN60529) |
