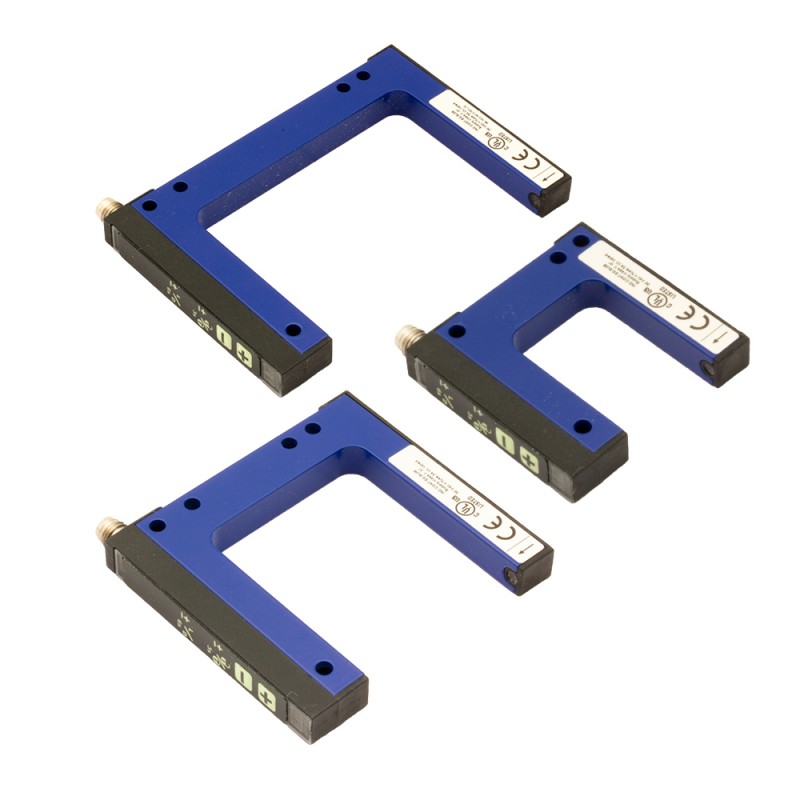

FC6I/0B-M510-1F MICRO DETECTORS Slot 5mm width 95mm depth, with adjustment, Infrared PNP/NPN M8
FC6I/0B-M510-1F
MICRO DETECTORS
Slot 5mm width 95mm depth, with adjustment, Infrared PNP/NPN M8
FC6I/0B-M510-1F Slot 5mm width 95mm depth ADJ Infrared PNP/NPN M8
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 5mm | |
| minimum detectable object | 0.2mm | |
| Sensitivity adjustment | Yes | |
Outputs
| Output type | NPN - PNP | |
| Output Function | LO/DO selectable | |
| Switching frequency | 10kHz | |
Electrical data
| Operating Voltage | 12-24Vdc | |
| No-Load supply current | 40mA | |
| Load current | 100mA | |
| Output voltage drop | ≤ 2V @ IL =100 mA | |
| Max ripple content | ≤ 10% | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | Infrared LED, modulated | |
| Interference to external light | 5000lux (incandescent lamp), 10000lux (sunlight) | |
Mechanical data
| Dimensions | Width slot detection 5mm - Depth slot detection 95mm | |
| Weight | 90g | |
| Housing Material | Painted aluminium | |
| Connections | M8 plug 4 pin | |
| Active Head Material | Polyamide/glass | |
| Operating temperature | - 20°C…+ 60°C | |
| Storage temperature | - 30°C…+ 80°C | |
Test/Approvals
| Approvals | CEUL | |
| EMC compatibility | EN 60947-5-2 | |
| Degree of protection | IP65 (EN60529) | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
