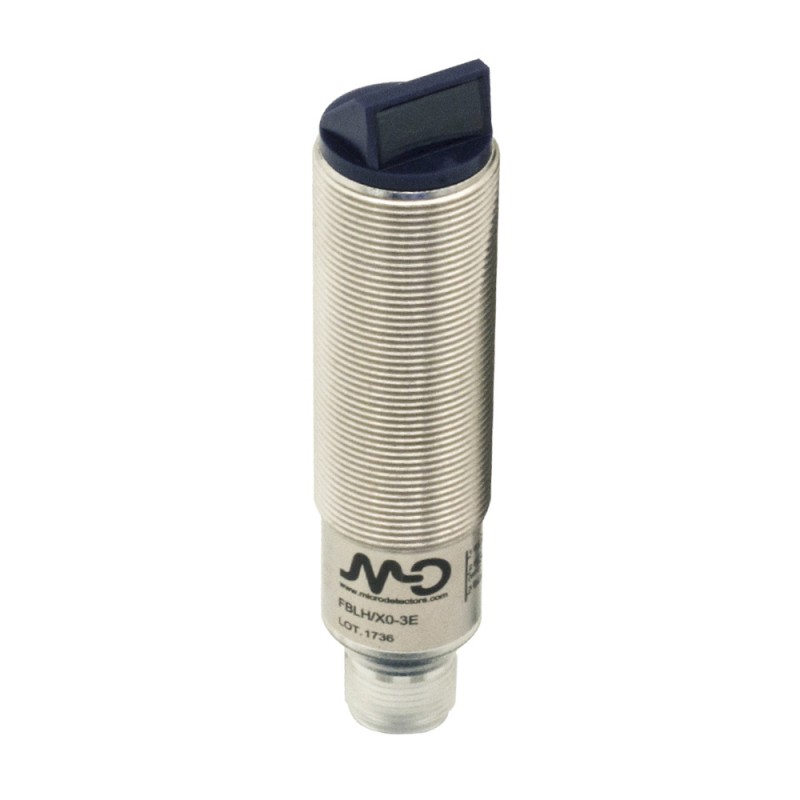

FBLN/BP-3E MICRO DETECTORS Photoelectric sensor 90° laser Retroreflective Polarised 20 m adjustable PNP NO+N..
FBLN/BP-3E
MICRO DETECTORS
Photoelectric sensor 90° laser Retroreflective Polarised 20 m adjustable PNP NO+NC metal. conn. M12
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
Detection properties
| Nominal sensing distance | 20m con RL110 ; 30m con RL201 , 5m con RL100D | |
| Thermal drift of Sr | ≤10% Sr | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | Teach-in | |
Application
| Function Principle | Polarizzata | |
| Optic position | Radiale (90°) | |
Outputs
| Output type | PNP | |
| Output Function | NO+NC | |
| Switching frequency | 800Hz | |
Electrical data
| Operating Voltage | 10-30Vdc | |
| No-Load supply current | ≤30mA | |
| Load current | ≤100mA | |
| Leakage current | ≤10μA | |
| Output voltage drop | 2V max. IL =100 mA | |
| Max ripple content | 10% | |
| LED indicators | Verde alimentazione/giallo(LightON EG≥2)/lampeggiante (LightON 1 | |
| Time delay before availability | ≤200ms | |
| Short-circuit protection | Cortocircuito (autoripristinante), sovratensioni | |
| Reverse Polarity Protection | Inversione della polarità, sovratensione impulsiva | |
| Emission | Diodo laser rosso (650nm) classe1 (IEC60825-1) | |
| Interference to external light | 3000lux (lampada ad incandescenza), 10000lux (luce solare) | |
Mechanical data
| Dimensions | M18 x 1/L=89,5mm | |
| Weight | 70g | |
| Housing Material | Ottone nichelato PA12 | |
| Connections | Connettore M12 | |
| Active Head Material | Vetro | |
| Tightening torque | 25Nm | |
| Operating temperature | - 15°C…+ 55° C (conout freeze) | |
Test/Approvals
| Approvals | CE, cULus | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibrazioni IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | ghiere M18 x 1, cacciavite | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Eccesso di Guadagno
