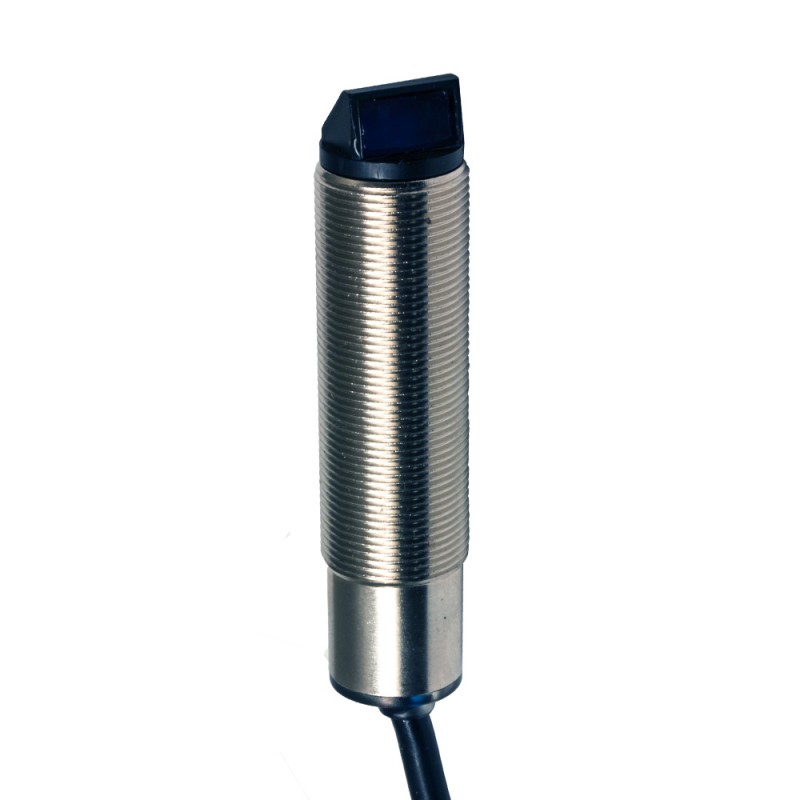

FBLH/X0-3A MICRO DETECTORS Photoelectric sensor 90° laser emitter 50 m Check metallic cable 2m axial
FBLH/X0-3A
MICRO DETECTORS
Photoelectric sensor 90° laser emitter 50 m Check metallic cable 2m axial
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
Detection properties
| Nominal sensing distance | 50m | |
| Thermal drift of Sr | ≤10% Sr | |
Application
| Function Principle | Through beam | |
| Emitter/Receiver | Emitter | |
| Check Input | BK/2 connected to 0Vdc swithing off the emission | |
| Optic position | Right angle (90°) | |
Electrical data
| Operating Voltage | 10-30Vdc | |
| No-Load supply current | ≤25mA | |
| Max ripple content | 10% | |
| LED indicators | Green (power ON) yellow (Emiss. ON) yellow(Emiss. OFF) | |
| Time delay before availability | ≤200ms | |
| Reverse Polarity Protection | Polarity inversal, Inpulsive voltage | |
| Emission | Red laser diode (650nm) class1 (IEC60825-1) | |
Mechanical data
| Dimensions | M18 x 1/L=75,4mm | |
| Weight | 110g | |
| Housing Material | Nicked plated brass PA12 | |
| Connections | 2m PVC cable | |
| Active Head Material | Glass | |
| Tightening torque | 25Nm | |
| Operating temperature | - 15°C…+ 55° C (Without freeze) | |
Test/Approvals
| Approvals | CE, cULus | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | nuts M18 x 1 | |
Electrical diagrams of the connections
Dimension (mm)
