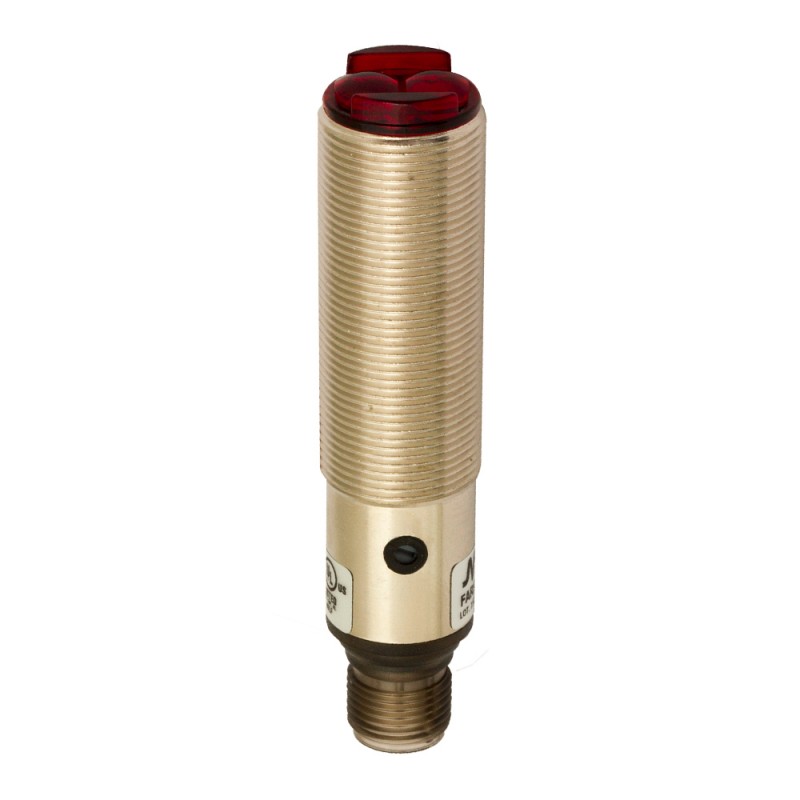

FARS/BP-1E7712 MICRO DETECTORS Photoelectric sensor Axial BGS 60-100 mm, adjustment PNP NO+NC metallic plug ..
FARS/BP-1E7712
MICRO DETECTORS
Photoelectric sensor Axial BGS 60-100 mm, adjustment PNP NO+NC metallic plug M12 antireflex
FARS/BP-1E7712 Photoelectric sensor Axial BGS 60-100 mm adj. PNP NO+NC metal. Conn. M12 antireflex
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 60..100mm with white target 100 x 100mm | |
| Thermal drift of Sr | ≤10% Sr | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | Trimmer | |
Application
| Function Principle | Background suppression | |
| Optic position | Axial | |
Outputs
| Output type | PNP | |
| Output Function | NO+NC | |
| Switching frequency | 1KHz | |
Electrical data
| Operating Voltage | 10-30Vdc | |
| No-Load supply current | ≤25mA | |
| Load current | ≤100mA | |
| Leakage current | ≤10μA | |
| Output voltage drop | 2V max. IL =100 mA | |
| Max ripple content | 10% | |
| LED indicators | Yellow (output state) | |
| Time delay before availability | ≤200ms | |
| Short-circuit protection | Short circuit (autoreset) | |
| Emission | Red (660 nm) | |
| Interference to external light | 5000lux (incandescent lamp), 10000lux (sunlight) | |
Mechanical data
| Dimensions | M18 x 1 /L =79,4mm | |
| Weight | 100g | |
| Housing Material | Nichel plated brass | |
| Connections | M12 4pin Plug | |
| Active Head Material | PMMA | |
| Tightening torque | 25Nm | |
| Operating temperature | - 25°C…+ 70° C (Without freeze) | |
Test/Approvals
| Approvals | CE, cULus | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | nuts M18 x 1, screwdriver | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
