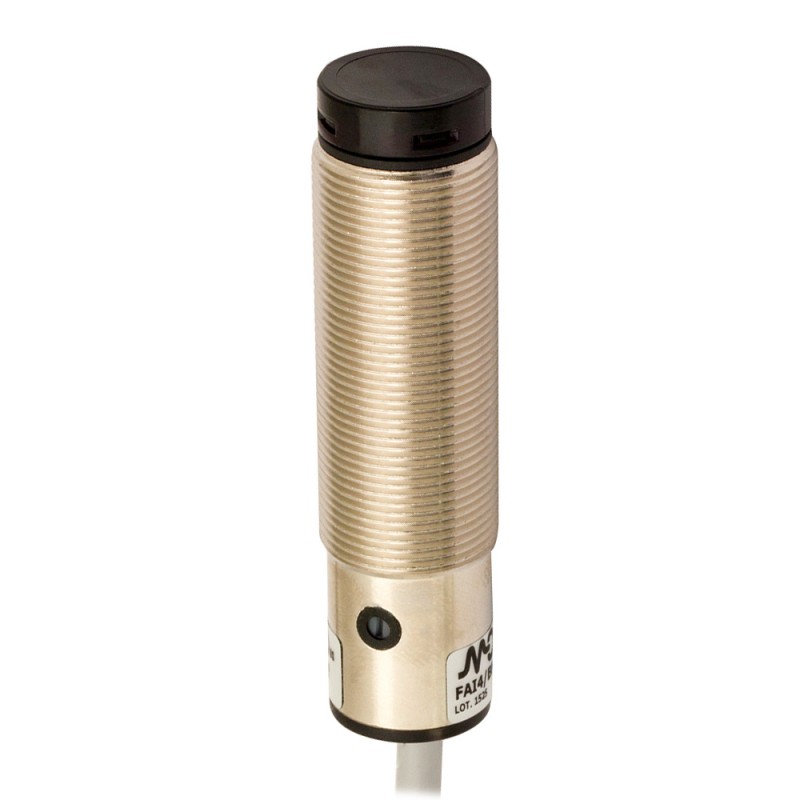

FARN/BP-1A MICRO DETECTORS Photoelectric sensor Axial polarised 3 m, adjustment PNP NO+NC metallic cable 2m ..
FARN/BP-1A
MICRO DETECTORS
Photoelectric sensor Axial polarised 3 m, adjustment PNP NO+NC metallic cable 2m axial
FARN/BP-1A Photoelectric sensor Axial Polarised 3 m adj. PNP NO+NC metal. cable 2m axial
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical details
Discovery properties
| Nominal range | 4m with RL110 | |
| Thermal drift | ≤10% Sr | |
| Repeatability | 5% | |
| Sensitivity adjustment | Potentiometer | |
Applications
| Principle of operation | Polarized | |
| Position lens | Axial | |
Outputs
| Output type | PNP | |
| Exit function | NA+NC | |
| Switching frequency | 250Hz | |
Electrical data
| Supply voltage | 10-30Vdc | |
| Absorption of current in the vacuum | ≤30mA | |
| Load current | ≤100mA | |
| Leakage current | ≤10µA | |
| Voltage drop to the output | 2V max. IL =100 mA | |
| Maximum residual ripple | 10% | |
| LED indicators | Yellow (state of output) | |
| Delay to the availability | ≤200ms | |
| Protection short circuit | Short circuit (auto reset), overvoltage | |
| Protection polarity reversal | polarity reversal, impulse surge | |
| Emission | Red light (660 nm) | |
| Immunity to ambient light | 5000 lux (incandescent lamp), 10000 lux (sunlight) | |
Mechanical data
| Dimensions | M18 x 1/L=67.5 mm | |
| Weight | 130g | |
| body material | Nickel-plated brass | |
| Connections | Cable 2m PVC | |
| Material of the active surface | PMMA | |
| Tightening torque | 25Nm | |
| Operating temperature | - 25°C...+ 70° C (without condensation) | |
Test/Certifications
| Certifications | CE, cULus | |
| Electromagnetic compatibility | According to en 60947-5-2 | |
| Shock and vibration | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP67 | |
Accessories
| Accessories included | 1 x nut M18, screwdriver | |
Electrical wiring diagram of the connections
Dimension (mm)
Datasheet - PDF
