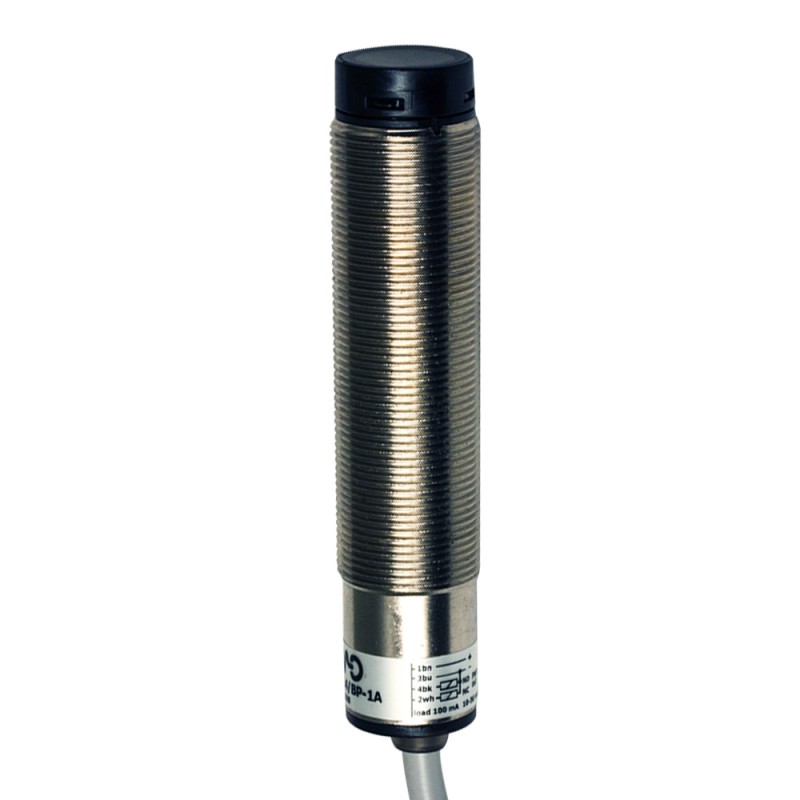

FALN/BN-2A MICRO DETECTORS Photoelectric sensor 90° laser Retroreflective polarised 20 m, adjustment NPN NO+..
FALN/BN-2A
MICRO DETECTORS
Photoelectric sensor 90° laser Retroreflective polarised 20 m, adjustment NPN NO+NC plastic cable 2m axial
FALN/BN-2A Photoelectric sensor 90° laser Retroreflective Polarised 20 m adj. NPN NO+NC plast. cable 2m axial
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 20m with RL110 ; 30m with RL201 , 5m with RL100D | |
| Thermal drift of Sr | ≤10% Sr | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | Teach-in | |
Application
| Function Principle | Polarized | |
| Optic position | Right angle (90°) | |
Outputs
| Output type | NPN | |
| Output Function | NO+NC | |
| Switching frequency | 800Hz | |
Electrical data
| Operating Voltage | 10-30Vdc | |
| No-Load supply current | ≤30mA | |
| Load current | ≤100mA | |
| Leakage current | ≤10μA | |
| Output voltage drop | 2V max. IL =100 mA | |
| Max ripple content | 10% | |
| LED indicators | Green power supply/yellow (LightON EG≥2)/yellow flashing (LightON 1 | |
| Time delay before availability | ≤200ms | |
| Short-circuit protection | Short circuit (autoreset), Overvoltage | |
| Reverse Polarity Protection | Polarity inversal, Inpulsive voltage | |
| Emission | Red laser diode (650nm) class1 (IEC60825-1) | |
| Interference to external light | 3000lux (incandescent lamp), 10000lux (sunlight) | |
Mechanical data
| Dimensions | M18 x 1/L=78,5mm | |
| Weight | 50g | |
| Housing Material | PBT | |
| Connections | 2m PVC cable | |
| Active Head Material | Glass | |
| Tightening torque | 1Nm | |
| Operating temperature | - 15°C…+ 55° C (Without freeze) | |
Test/Approvals
| Approvals | CE, cULus | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | nuts M18 x 1, screwdriver | |
Electrical diagrams of the connections
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Eccesso di Guadagno
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
