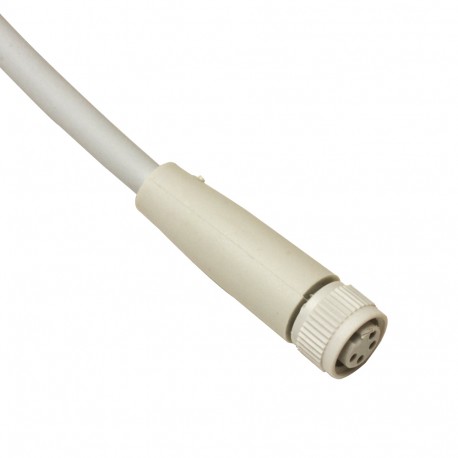

CD08F/0B-050A4 MICRO DETECTORS M8 female Connector Axial 4 poles Cable PP-EPDM 5m IP69K
CD08F/0B-050A4
MICRO DETECTORS
M8 female Connector Axial 4 poles Cable PP-EPDM 5m IP69K
CD08F/0B-050A4 M8 female Connector Axial 4 poles Cable PP-EPDM 5m IP69K, -40°C…+105°C
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
Electrical data
| Nominal current | 4 A | |
| Led | No | |
| Wires | 4 | |
| Nominal voltage | Max . 48Vac/60Vdc | |
Mechanical data
| Jacket color | RAL 7035 - Grigio | |
| Gasket material | FKM | |
| Nut material | PP | |
| Conductors diameter including isolation | Ø 1,17mm ± 0,02mm | |
| Number of bending cycles | 4000000 | |
| Traversing path | ≤ 10 m | |
| Tightening torque | 0,2 Nm | |
| Traversing rate | ≤ 3 m/s | |
| Acceleration | ≤ 10 m/s3 | |
| Operating temperature | -40°C ÷ +105°C (posa fissa) -25°C ÷ +105°C (movimentazione) | |
| Torsion force | ± 270°/m (4000000 cicli di torsione, max. 25 cicli di torsione/min) | |
| 1 | 5 | |
| Outer diameter | Ø 4,5mm ± 0,15mm | |
| Head type | Assiale | |
| Gasket material | PP-EPDM | |
| Wire isolation | PP | |
| Bending radius | > 10 x D (movimentazione) > 5 x D (posa fissa) | |
| Conductors section | 4 | |
Test/Approvals
| Degree of protection | IP65 / IP67 / IP68 / IP69K | |
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
