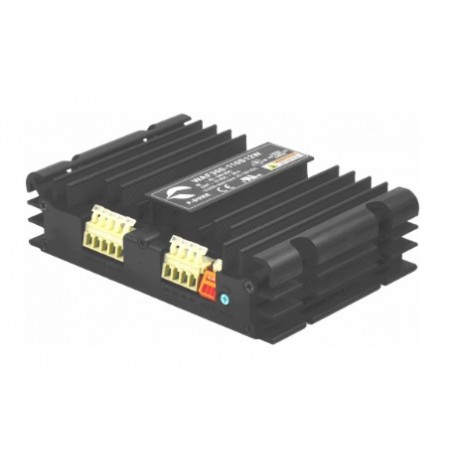

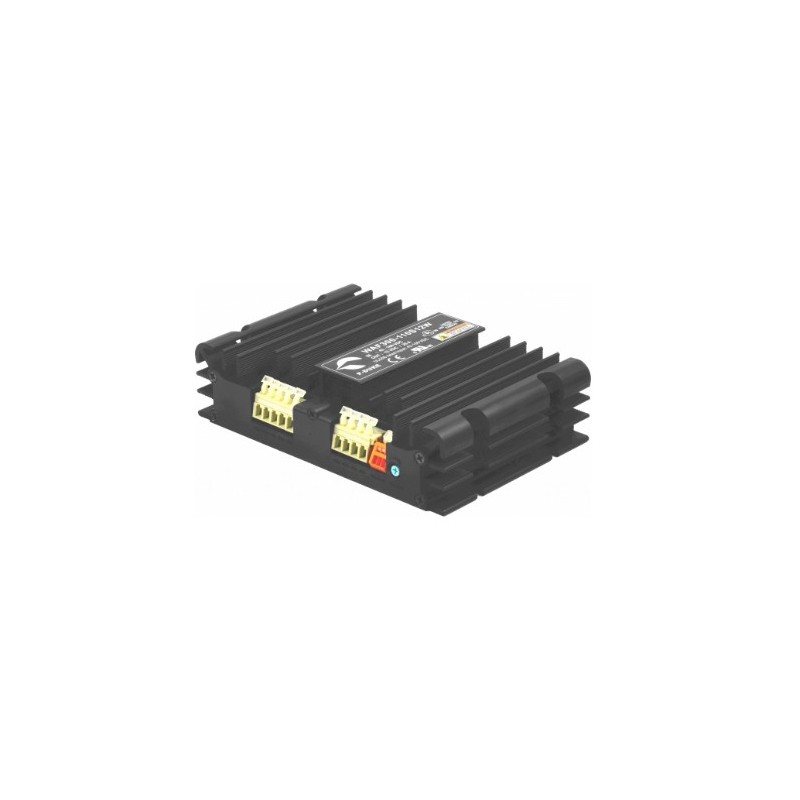

WAF300-48S12W MEANWELL DC-DC converter, Input: 18-75VDC. Output: 12VDC. 300W. Railway. Regulated & Isolated ..

Dc/DC converter Rail is a Regulated Isolated Output.

Converter for Railway applications, Industrial or Telecommunications.

Input range18-75Vcc.

Output voltage12vdc.

Output intensity25A.

Power:300W.

Isolation input-output 3000Vcc.

Efficiency of 89%.

Dimensions (Length x Width x Height):152,4 x 101,5 x 38,6 mm.

Operating temperature of the box since -40ºC until +100ºC (see the curve derived in the technical data sheet).

This converter is a converter designed for railway applications, industrial or telecommunications.

Is certified with the regulations for railway EN50155, EN55022 class A and EN45545-2 in front of the fire.

This converter has a compact size and has been designed for the most demanding applications at the level of vibration, temperature, and humidity. Has a low profile of only 17mm, and use only components prepared for high temperatures.

It has a low noise and ripple, as well as a high efficiency and is protected against reverse polarity at the input.

Its output is protected against short-circuits and overloads by limiting output current, this allows you to start loads with a high inrush.

Adjustable output voltage, through a resistance connected across the terminals of Trim 1 and Trim 2, up to 20% less than its value.

Remote on / off.

3 Years of Warranty.

Manufacturer: P-DUKE
