UHP-500-24
MEANWELL
1
Available Ship on today

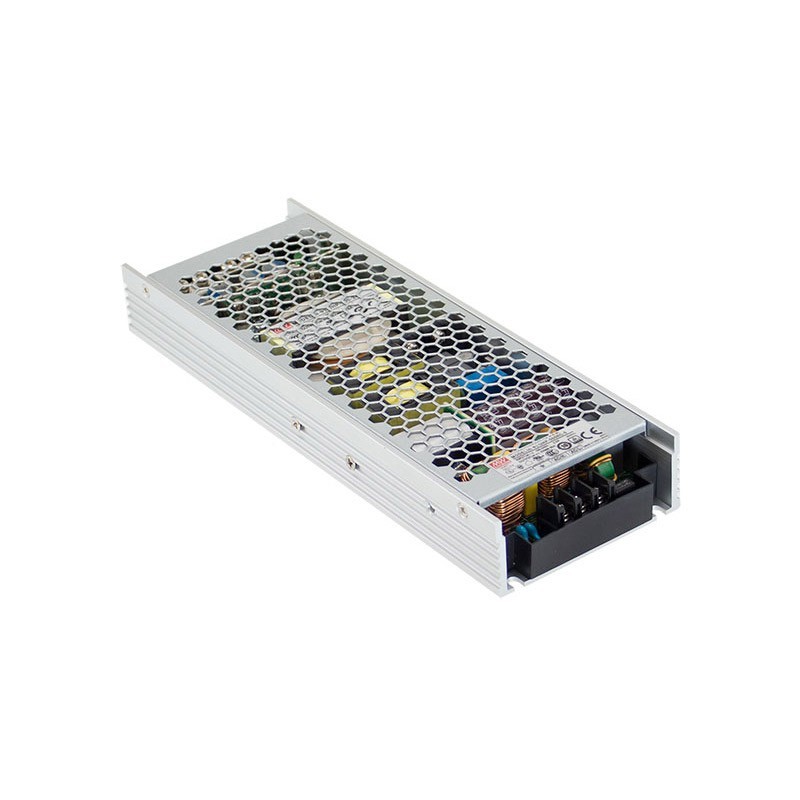

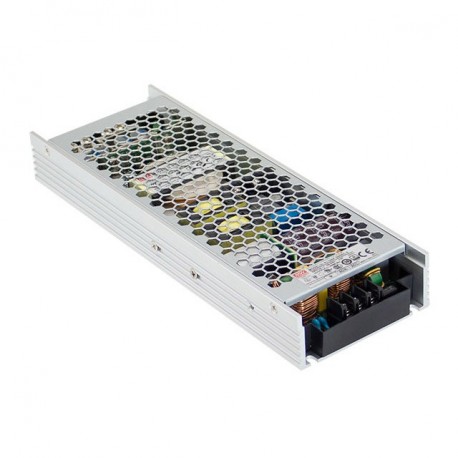

AC-DC Slim Single output enclosed power supply with PFC, Output 24VDC / 20.9A
PFC
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | UHP-500-24 |
---|---|
Long Description | Switched Power supply in case of grid. Certified source for industrial applications, and home automation. Format in case of grid. U-type with low profile. Range of universal input90-264vac47-63Hz. Output voltage24vdc. Adjustable by potentiometer (22,8-25,2 Vdc). Output intensity20,9 To. Range of output current 0-20,9 according To the demand load. Power:501,6 W. Efficiency typical:94.5 per cent. Factor corrector, power>0,95to 230vac at full load. Protection against short circuit, over load, over voltage and temperature. Input class I with grounding. LED indicator of operation. Operating altitude up to5000 metres. Working temperature: from-20ºCup+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:232 x 81 x 31. 3 years warranty. Manufacturer: MEAN WELL The series UHP are switching power supplies grid-type, U-shape and low profile with high efficiency.Support input voltages of 300Vca for 5 seconds and use components of the highest reliability. Support peak loads of up to 150%, during 100ms, which allows you to start heavy loads or withstand spikes without the need to oversize the power source. Have a power LED. Are certified to operate up to 5000 meters of altitude. Have multiple protections (short circuit, overload, over voltage and temperature). Designed for multiple applications such as mechanical and electrical equipment, appliances, LED panels, industrial machinery, control of industrial systems. Are certified CE, UL, CAS, CCC and regulations for residential use EN60335-1 and are designed to comply with EN61558-1-2 and EN61558-2-16. Its design semiencapsulado to provide greater protection against dust and moisture. The series UHP these sources are robust and reliable for all types of applications. |
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | Power supply AC/DC |
Format | Box |
Subformato | Or |
Applications | Automation of Buildings, Appliances, Lighting, Industrial, Telecommunications |
Series | UHP-500 |
State | New |
Warranty (Years) | 3,00 |
Height (mm) | 31.00 |
Width (mm) | 81.00 |
Long/Background | 232.00 |
Type of Entry CA | Single-phase |
AC input Min | 90,00 |
AC input Max | 264,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Screw-Type |
Output voltage | 24,00 |
Power (W) | 501,60 |
Peak Power (W) | 501.6 |
Output connector | Screw-Type |
Isolation (V) | 3.750,00 |
Approvals | CCC, CE, EAC, UL |
