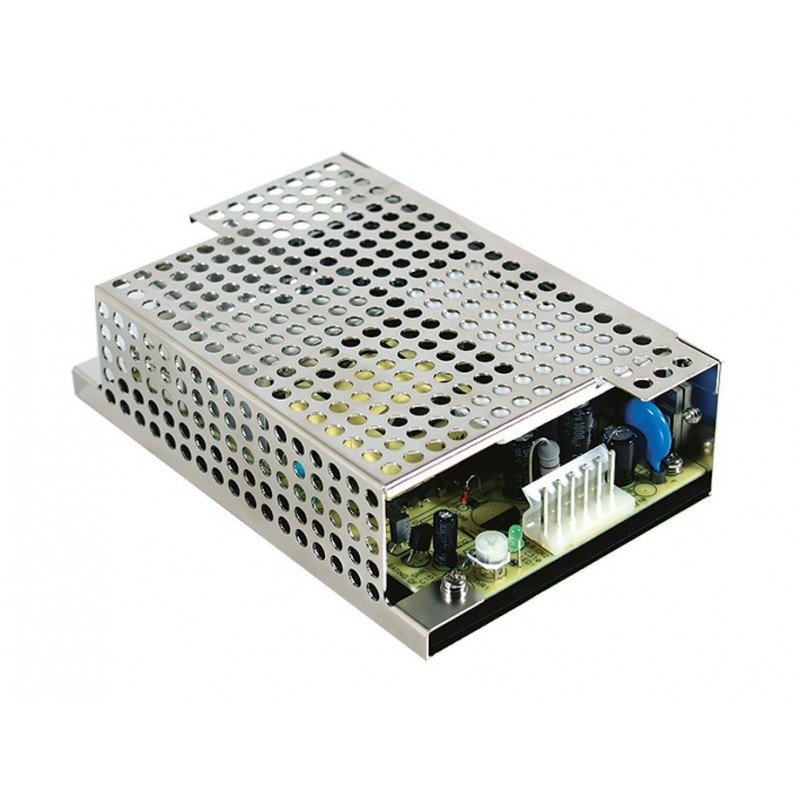

RPT-65F-C MEANWELL AC-DC Triple output Open frame power supply, Output 12VDC / 5.8A /+5VDC / 1.5A /-12VDC / ..
RPT-65F-C
MEANWELL
AC-DC Triple output Open frame power supply, Output 12VDC / 5.8A /+5VDC / 1.5A /-12VDC / 0.7A, with L-Bracket and cover
OPEN FRAME > RPT
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
More info
▲| Name | RPT-65F-C |
|---|---|
| Long Description | Power supply in the format box of the grid. Range of universal Input90-264vac47-440Hz. Outputs: -12vdc:
+5vdc:
+12vdc:
Power:66Wand80W with external air 18CFM. Leakage current < 100µA. Efficiency typical:77%. Consumption without load <1W. Working temperature: from-Twenty up +60 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:130 x 85 x 37. 2 years of warranty. Manufacturer: MEAN WELL. The series RPT-65 are a source of power certified. Have a leakage current (contact current) is very low for a greater security in the application. Can operate with cooling by free air circulation or provide a higher power through the use of an external fan. |
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | Box |
| Subformato | Grid |
| Applications | Industrial, Telecommunications |
| Series | RPT-65 |
| State | Do not Use for New Designs |
| Warranty (Years) | 2,00 |
| Height (mm) | Thirty seven |
| Width (mm) | Eighty five |
| Long/Background | One hundred thirty |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz, 440 Hz |
| Input connector | Plug-in |
| You Need To Load Minimum | Yes |
| Output 1 | -12 |
| Output 2 | +5 |
| Output 3 | +12 |
| Power (W) | 66,00 |
| Peak Power (W) | Eighty |
| Output connector | Plug-in |
| Isolation (V) | 3.000,00 |
| Approvals | EC |
