MSP-1000-48
MEANWELL
1
Available Ship on today

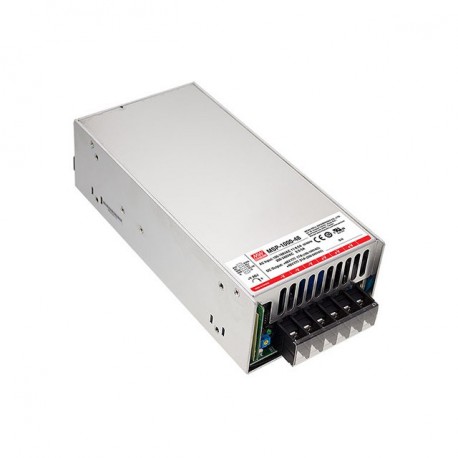

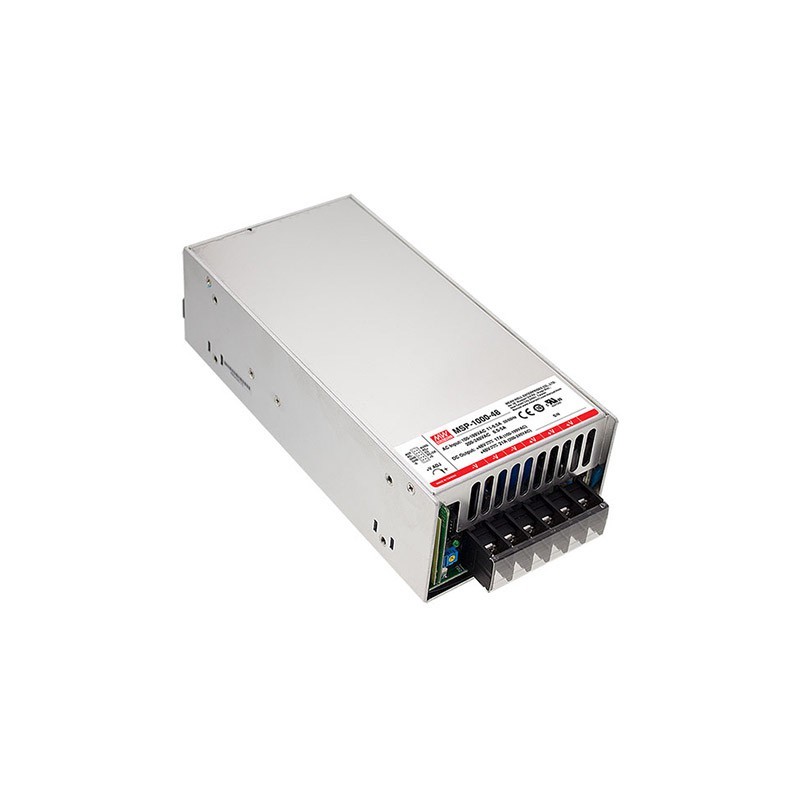

AC-DC Single output Medical Enclosed power supply, Output 48VDC / 21A, MOOP, remote ON/OFF, DC OK signal
ENCLOSED MEDICAL > MSP
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | MSP-1000-48 |
---|---|
Long Description | Medical power supply in box. Source certified for applications in medical, 2x MOPP (patient protection). Format in case of grid. Range of universal input90-264vac47-63Hz. Output voltage48vdc. Adjustable by potentiometer (46-56Vcc). Output intensity21A. Range of output current of 0-21A according to demand load. Power:1008W. Efficiency typical:94%. Factor corrector, power>0,95. Paralelizable up to 4 units with sharing of active power to provide a higher power. Source certified for applications in medical2xMOPP(the patient protection). Role of sensing in order to compensate the drop voltage on the output cables. Consumption at no load <0,75 W (remote shutdown). Remote on / off. Alarm signal output Ok (DC-Ok). Protection against short circuit, over load, over voltage and temperature. Working temperature: from-40ºCup+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:218 x 105 x 63.5. 5 years warranty. Manufacturer: MEAN WELL The series MSP are the sources of most high-end format box MEAN WELL. Are designed for demanding applications. Support input voltages of 300Vca for 5 seconds and use components of the highest reliability as the electrolytic capacitors of 105ºC. Designed for medical applications2xMOPP(the patient protection).Have a correction factor power active. Sources with a high-efficiency multiple protections (short circuit, over load, over voltage and temperature). The protection against over loads is for current limiting, constant current, and can reduce stress by up to 50% of its nominal value and keeping the output intensity, this serves to start heavy loads such as motors or other inductive loads or capacitive. Possess a system on and off remote. Incorporate an alarm signal output OK (DC-OK). Have a consumption without load <0,75 W. We can parallelize up to 4 units to increase the power. Certificate CE, CAS, UL, ANSI/AAMI ES60601-1, IEC60601-1. |
Country of Origin | Taiwan |
Manufacturer | MEAN WELL |
Product type | Power supply AC/DC |
Format | Box |
Subformato | Grid |
Applications | Industrial, Medical, Telecommunications |
Series | MSP-1000 |
State | New |
Warranty (Years) | 5,00 |
Height (mm) | 63.50 |
Width (mm) | 105.00 |
Long/Background | 218.00 |
Type of Entry CA | Single-phase |
AC input Min | 90,00 |
AC input Max | 264,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Screw-Type |
Output voltage | 48,00 |
Power (W) | 1.008,00 |
Peak Power (W) | One thousand eight |
Output connector | Screw-Type |
Fan | Yes |
Alarms | Output OK |
Isolation (V) | 4.000,00 |
Approvals | EC, EAC, EN60601 3rd Edition, UL, UL60601 3rd Edition |
