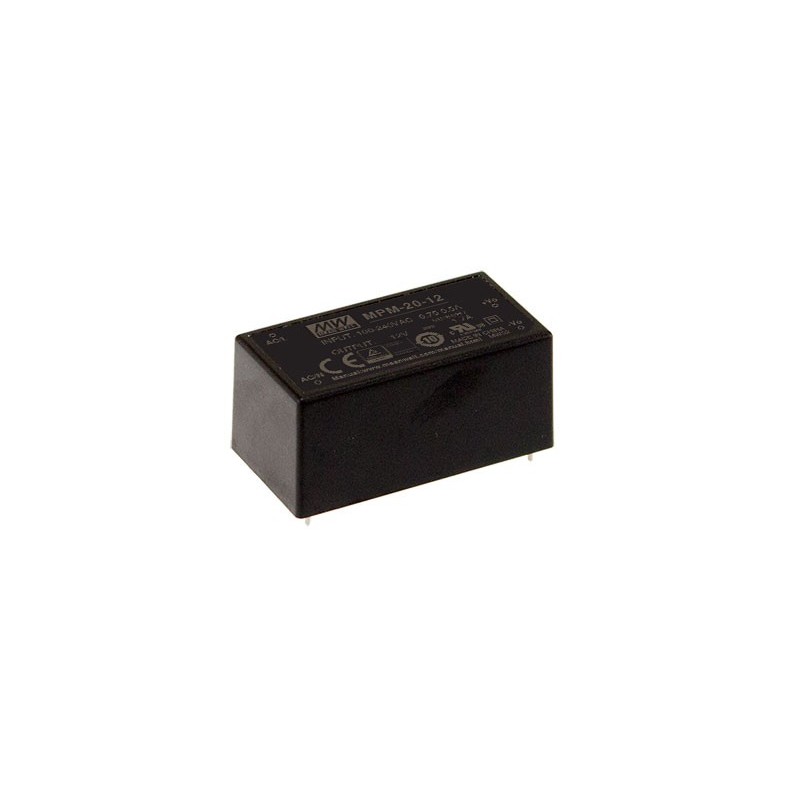

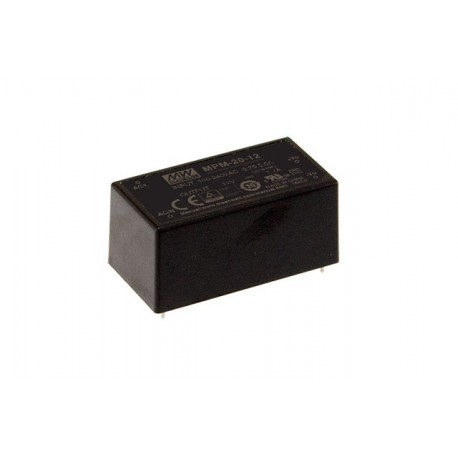

MPM-20-24 MEANWELL AC-DC Single output Medical Encapsulated power supply, Output 24VDC / 0.9A, PCB through h..

Medical power supply for printed circuit board encapsulated.

Source certified for medical applications 2x MOPP (patient protection).

Encapsulated format for printed circuit boards.

Range of universal input80-264vac.47-63Hz.

Voltageoutput24vdc.

Intensity ofoutput900mA(990mA max). Range of output current 0-900mA according to demand load.

Power:21,6 W(23,8 W for 10s).

Efficiency typical:87%.

Consumption without load<0,075 W.

Protection against short circuit, over load, over voltage and temperature.

Requires No minimum load.

Level of vibration up to 5G.

Input class II without grounding. EMI class B.

Low leakage current < 80µA to 264vac.

Working temperature: from-35up+85 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Length x Width x Height) [mm]:52,4 x to 27.2 x 24.

3 years of warranty.

Manufacturer: MEAN WELL.

The series MPM are power supply certified for medical use with patient protection, 2 x MOPP (means of patient protection). They have a double protection between input and output 2xMOPP.Have a leakage current (contact current) is very low for a greater security in the application. With low power consumption at no load and requires no minimum load. It has been designed for the most demanding applications at the level of vibration (5G). Sources with class II non-grounded. With an excellent heat dissipation and high useful life thanks to its encapsulation.
