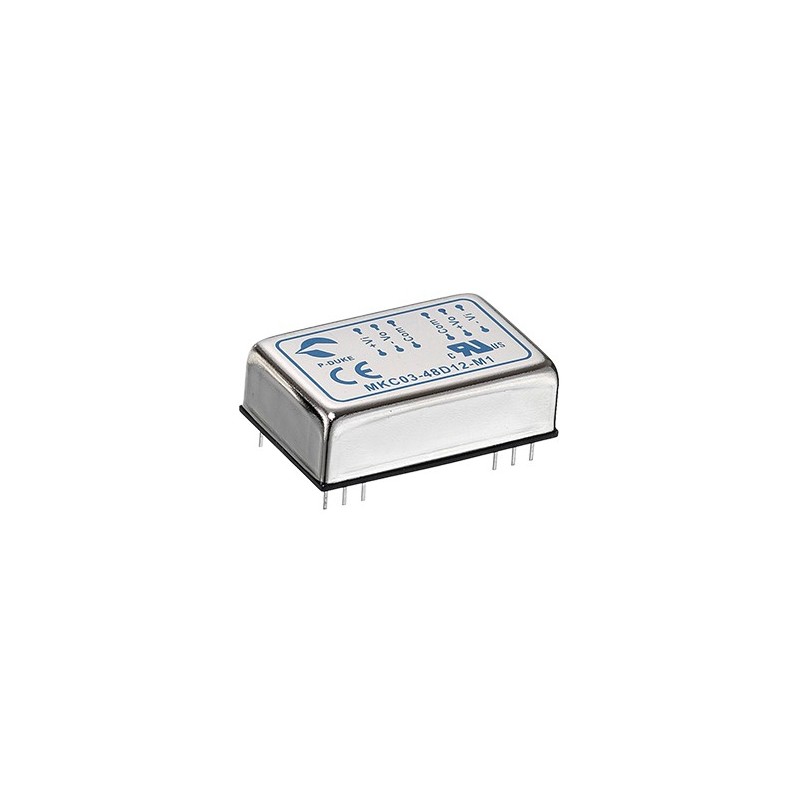

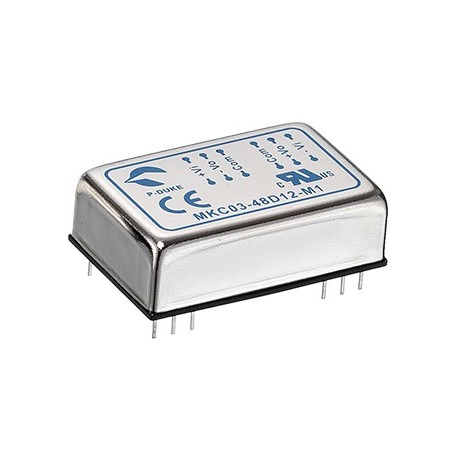

MKC03-48DS05 MEANWELL DC-DC converter for PCB mount, Input: 36-75VDC. Outputs: +5 / +5.Power: 2,5W.Isolation..
MKC03-48DS05
MEANWELL
DC-DC converter for PCB mount, Input: 36-75VDC. Outputs: +5 / +5.Power: 2,5W.Isolation 500VDC.DIP. metallic enclosure.
INVERTERS > IRC
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Best sellers
▲More info
▲| Name | MKC03-48DS05 |
|---|---|
| Long Description | Dc/DC converter to the printed circuit board in format DIP, with 2 outputs positive. Metallic box. FormatDIPfor soldering on printed circuit boards. Input range36-75Vcc. Outputs: +5vdc:
+5vdc:
Power:2.5 W. Isolation input-output 500Vcc. Efficiency typical: 74%. Low noise and ripple 50mVp-p. Without the need of minimum load on the output. Working temperature: from-25up+85 ° C. See the curve of drift according to the temperature in the technical data sheet. Max temperature box:+100 ° C. Dimensions (Length x Width x Height) [mm]:31,8 x 20,3 x 10,2. 3 years of warranty. Manufacturer: P-DUKE. The converters of the series MKC03 have a wide input range 2:1 and an isolation between input and output of 500Vcc. Do not have requirements of minimum load on the output and are protected against overloads and short-circuits. Its metal case improved behavior of temperature at the same time improving the behavior EMI. CE certified and UL listed. |
| Country of Origin | Taiwan |
| Manufacturer | P-DUKE |
| Product type | Dc/DC converters |
| Format | For Printed Circuit |
| Subformato | DIP |
| Applications | Building automation, Industrial, Telecommunications |
| Series | MKC03 |
| Warranty (Years) | 3,00 |
| Height (mm) | 10.2 |
| Width (mm) | 31.8 |
| Long/Background | 20.3 |
| Input range | 2:1 |
| Range DC Input | 36, 36,4, 38,4, 40, 43, 46,8, 50, 50,4, 52, 56, 60, 62,4, 64,4, 67,2, 72, 75 |
| DC input Min | 36,00 |
| DC input Max | 75,00 |
| Input connector | Pin |
| Output 1 | +5 |
| Output 2 | +5 |
| Power (W) | 2,50 |
| Peak Power (W) | 2.5 |
| Output connector | Pin |
| Isolation (V) | 500,00 |
| Approvals | CE, UL |
