MFM-20-12
MEANWELL
1
Available Ship on today

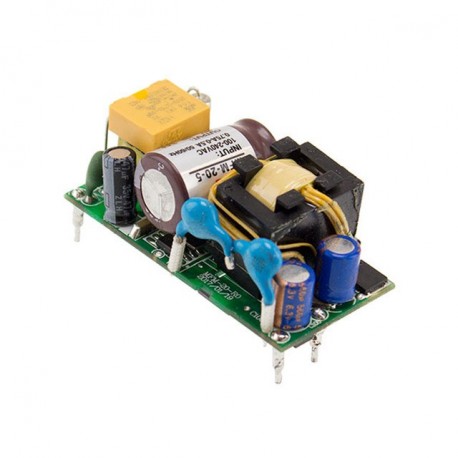

AC-DC Single output Medical Open frame power supply, Output 12VDC / 1.8A, PCB mount, 2xMOPP
PM,NFM,IRM
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | MFM-20-12 |
---|---|
Long Description | Medical power supply for printed circuit board in an Open format(Open-Frame). Source certified for medical applications 2x MOPP (patient protection). Open format for printed circuit boards. Range of universal input80-264vac.47-63Hz. Output voltage12vdc. Output intensity1800mA(1980mA max). Range of output current 0-1800mA depending on demand load. Power:21,6 W(23,8W for 10s). Efficiency typical:85,5%. Consumption without load<0,075 W. Protection against short circuit, over load, over voltage and temperature. Requires No minimum load. Level of vibration up to 5G. Input class II without grounding. EMI class B. Low leakage current < 80µA to 264vac. Working temperature: from-35up+85 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:49 x 23.8 x 23. 3 years of warranty. Manufacturer: MEAN WELL. The series MPM are power supply certified for medical use with patient protection, 2 x MOPP (means of patient protection). They have a double protection between input and output 2xMOPP.Have a leakage current (contact current) is very low for a greater security in the application. With low power consumption at no load and requires no minimum load. It has been designed for the most demanding applications at the level of vibration (5G). Sources with class II non-grounded. These sources can be used for medical applications BF (body floating) with the necessary considerations of the system and for industrial applications, and information technology. Suitable for portable medical devices, mobile clinics, monitors and instruments for medical examination. Complies with ANSI/AAMI ES60601-1 and IEC/EN60601-1. |
Country of Origin | China |
Stock | Yes |
Manufacturer | MEAN WELL |
Product type | Power supply AC/DC |
Format | For Printed Circuit |
Subformato | 1.93"x0.94" |
Applications | Industrial, Medical, Telecommunications |
Series | MFM-20 |
State | New |
Warranty (Years) | 3,00 |
Height (mm) | 23.00 |
Width (mm) | 23.80 |
Long/Background | 49.00 |
Type of Entry CA | Single-phase |
AC input Min | 80,00 |
AC input Max | 264,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Pin |
Output voltage | 12,00 |
Power (W) | 21,60 |
Peak Power (W) | 23.8 |
Output connector | Pin |
Isolation (V) | 4.000,00 |
Approvals | EC, EAC, EN60601 3rd Edition, UL |
