KNX-20E-640
MEANWELL
1
Available Ship on today

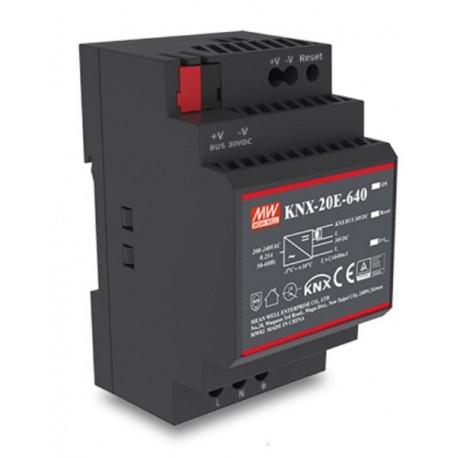

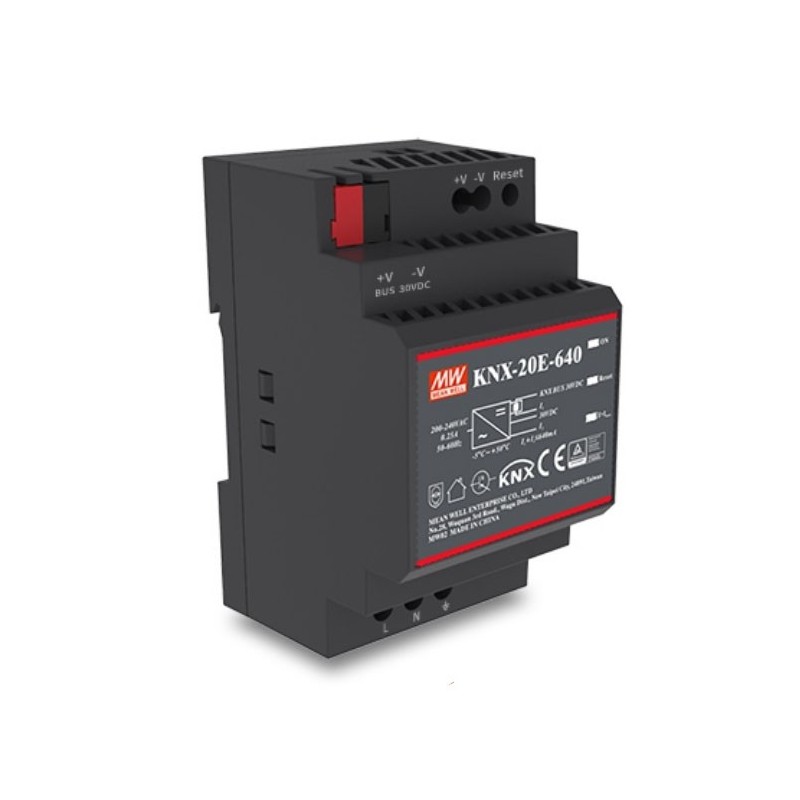

AC-DC KNX EIB DIN rail power supply with integrated choke, Output 30VDC / 640mA, plastic case
DIN RAIL
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | KNX-20E-640 |
---|---|
Long Description | Power supply for the KNX bus. Format to install on a Din Rail. Input range180-264vac47-63Hz. Power supply class I grounding. Output voltage30vdcwith choke (filter) built in. Output intensity:640mA. Additional output for power supply of sensors and auxiliary devices. Power:To 19.2 W. Reset button to reset the bus 20 s. LED indicator of correct operation. Consumption without load <0.5 W. Efficiency:86%. Working temperature: from-30up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Width x Height x depth):52,5 (3 modules) x 90 x 54,5 mm 3 years of warranty. Manufacturer: MEANWELL. The model KNX-20E-640 is a power supply 640 mA to power the KNX bus. The outputs are protected against overload and short circuits. This model has a low consumption at no load less than 0.5 W and a high efficiency that allows a large energy savings. Its range of temperature from -30ºC up to +70 ° C allows its use in most environments and applications. For more details, refer to the technical data sheet. |
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | Power supply AC/DC |
Format | Din Rail |
Subformato | Ladder |
Applications | Building automation, Lighting, Industrial, Telecommunications |
Series | KNX-20E |
State | Recommended Model |
Warranty (Years) | 3,00 |
Height (mm) | 90.00 |
Width (mm) | 52.50 |
Long/Background | 58.50 |
Type of Entry CA | Single-phase |
AC input Min | 180,00 |
AC input Max | 264,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Screw-Type |
Output voltage | 30,00 |
Power (W) | 19,20 |
Peak Power (W) | 19.2 |
Output connector | Screw-Type |
Interface | KNX |
Isolation (V) | 3.750,00 |
Approvals | EC |
