NPF-40-36
MEANWELL
1
Available Ship on today

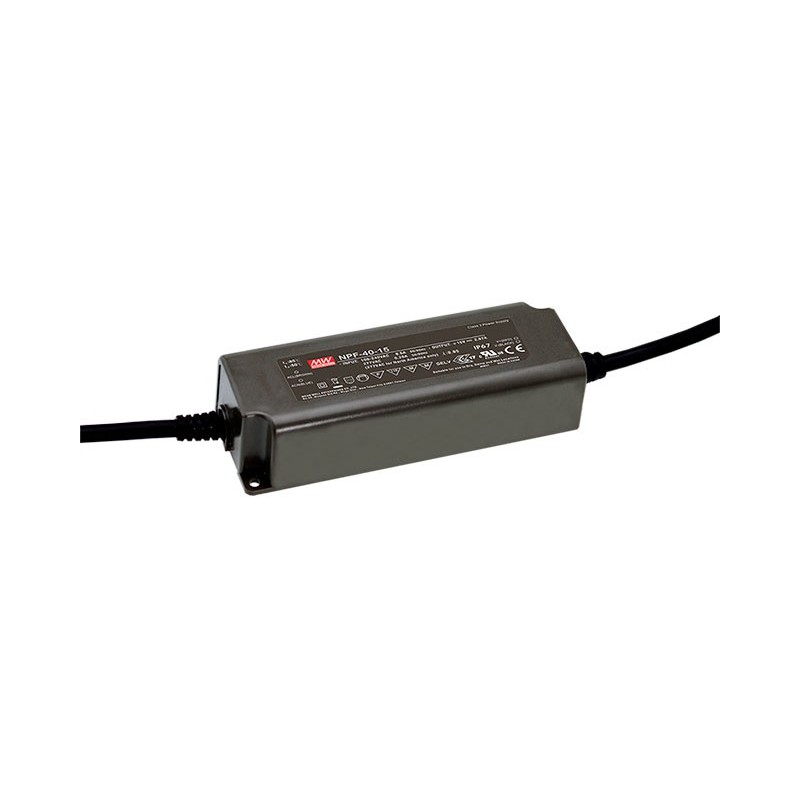

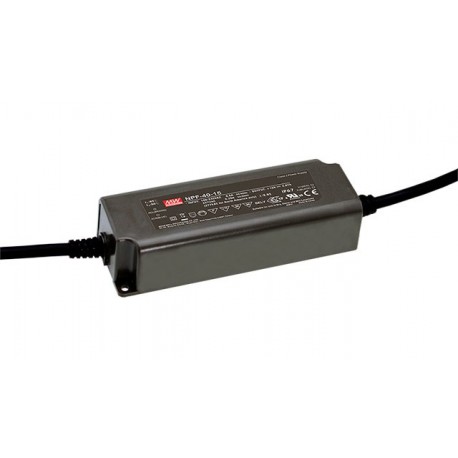

AC-DC Single output LED driver with Active PFC, Output 36VDC / 1.12A
LED DRIVERS > NPF
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | NPF-40-36 |
---|---|
Long Description | LED driver. Specially designed for powering LEDs directly in a steady stream. Format in box Waterproof plasticIP67 Input range90-305Vca47-63Hz Output in constant current1120mA. Range of output voltage21.6 to 36Vccaccording to demade the load. Power:40,3 W. Efficiency typical:90%. Input class II without grounding. Factor corrector, power>0,95to 230vac at full load. Consumption without load <0,50 W. Operating temperature range of caseTcfrom-40ºCup+70ºC. Dimensions (Length x Width x Height):150 x 53 x 35mm 5 years of warranty. Manufacturer: MEAN WELL. This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current. You can also work in voltage mode constant giving a fixed voltage of 36V if the load is powered at constant voltage and does not overcome the maximum output power. With plastic housing, watertight, designed for lighting applications in indoor, decorative, architectural, signage, mobile (roads, screens...) or tunnel lighting. Suitable for damp and wet conditions. Approved HL Class I Division 2 for ex-zones in the US. |
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | LED Driver |
Format | Box |
Subformato | IP67 |
Applications | Lighting |
Series | NPF-40 |
State | Recommended Model |
Warranty (Years) | 5,00 |
Height (mm) | 35.00 |
Width (mm) | 53.00 |
Long/Background | 150.00 |
Type of Entry CA | Single-phase |
AC input Min | 90,00 |
AC input Max | 305,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Cable |
Intensity of Minimum Output (mA) | 1.120,00 |
Intensity of Output Maximum (mA) | 1.120,00 |
Output current mA | 1100, 1150 |
Power (W) | 40,30 |
Peak Power (W) | 40.3 |
Output connector | Cable |
Isolation (V) | 3.750,00 |
Approvals | CCC, CE, ENEC, UL |
