NPF-120-12
MEANWELL
1
Available Ship on today

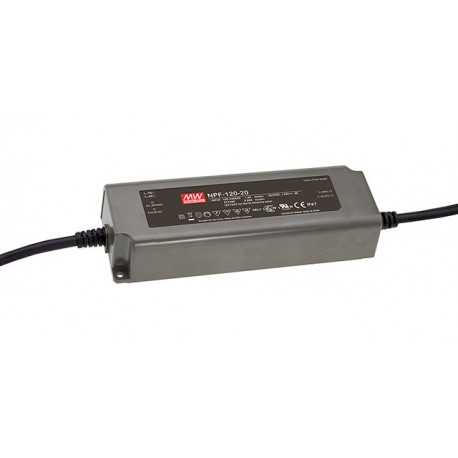

AC-DC Single output LED driver mix mode (CC+CV) with Active PFC, Output 12VDC / 10A
LED DRIVERS > NPF
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | NPF-120-12 |
---|---|
Long Description | LED driver. Specially designed to feed LED strips. Format in box waterproof plasticIP67. Input range90-305Vca47-63Hz. Output voltage12vdc. Output intensity10A. Range of output current 0-10A according to demand load. Power:120W. Efficiency typical:Eighty nine%. Input class II without grounding. Factor corrector, power>0.96to 230vac at full load. Consumption without load <0,15 W. Operating temperature range of caseTcfrom-40ºCup+70ºC. Dimensions (Length x Width x Height):191 x 63 x 37.5 mm 5 years of warranty. Manufacturer: MEAN WELL. This source is designed to work directly with LED strips or LED bulbs, which are fed at constant voltage. Working mode constant voltage giving a fixed voltage of 12V if the load is powered at constant voltage and does not overcome the maximum output power. With plastic housing, watertight, designed for lighting applications in indoor, decorative, architectural, signage, mobile (roads, screens...) or tunnel lighting. Suitable for damp and wet conditions. Approved HL Class I Division 2 for ex-zones in the US. |
Country of Origin | China |
Stock | Yes |
Manufacturer | MEAN WELL |
Product type | LED Driver |
Format | Box |
Subformato | IP67 |
Applications | Lighting |
Series | NPF-120 |
State | Recommended Model |
Warranty (Years) | 5,00 |
Height (mm) | 37.50 |
Width (mm) | 63.00 |
Long/Background | 191.00 |
Type of Entry CA | Single-phase |
AC input Min | 90,00 |
AC input Max | 305,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Cable |
Output voltage | 12,00 |
Power (W) | 120,00 |
Peak Power (W) | One hundred twenty |
Output connector | Cable |
Isolation (V) | 3.750,00 |
Approvals | CCC, CE, ENEC, UL |
