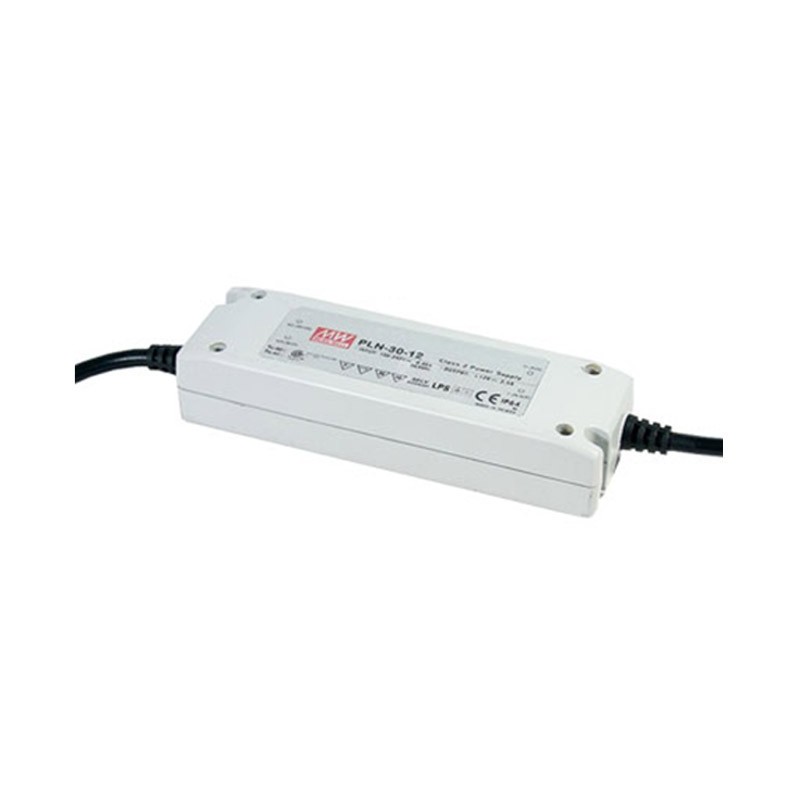

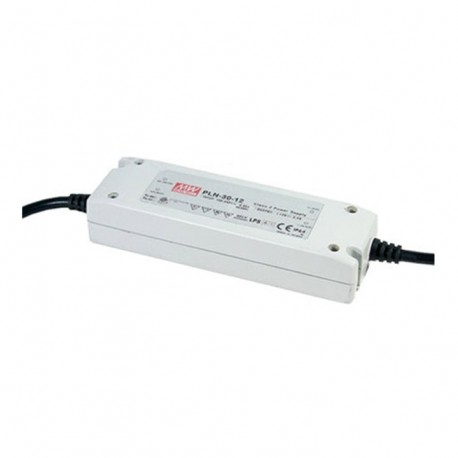

PLN-30-24
MEANWELL
1
Available Ship on today
AC-DC Single output LED driver Mix mode (CV+CC), Output 24VDC / 1.25A, cable output, Encapsulated IP64
LED DRIVERS > PLN
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | PLN-30-24 |
---|---|
Long Description | LED driver. Specially designed for powering LEDs directly in a steady stream. Format in plastic boxIP64. Input range90-295Vca47-63Hz. Output in constant current1250mA.Adjustable by internal potentiometer SVR2 (3%-25%). Range of output voltage with current mode constantThe 16.8 to 24vdcaccording to demand load. Output voltage with current mode constant24vdc.Adjustable by internal potentiometer SVR1 (-5% to 10%). Power:30W. Efficiency typical:84%. Potentiometers:This model incorporates 2 potentiometers inside that allows us to regulate the output voltage and the maximum output current. Input class II without grounding. Factor corrector, power>0,9to 230vac at full load. Operating temperature range of caseTcfrom-30ºCup+50ºC. Dimensions (Length x Width x Height):145 x 47 x 30mm. 2 years of warranty. Manufacturer: MEAN WELL. The series PLN are LED Drvers designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current. The output voltage and the output current can be adjusted byknobs internal(SVR1 / SVR-2), located in the plate of the source. With plastic housing is isolated. A small and compact size makes it have high reliability and low cost. These sources are suitable for LED lighting and signalling mobile installations of interior and exterior. Suitable for wet environments and wet conditions. Burn test at 100% load. Complies with the requirements of security at the global level for lighting. |
Country of Origin | China |
Stock | Yes |
Manufacturer | MEAN WELL |
Product type | LED Driver |
Format | Box |
Subformato | IP64 |
Applications | Lighting |
Series | PLN-30 |
Warranty (Years) | 2,00 |
Height (mm) | 30.00 |
Width (mm) | 47.00 |
Long/Background | 145.00 |
Type of Entry CA | Single-phase |
AC input Min | 90,00 |
AC input Max | 295,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Cable |
Intensity of Minimum Output (mA) | 1.250,00 |
Intensity of Output Maximum (mA) | 1.250,00 |
Output current mA | One thousand two hundred fifty |
Power (W) | 30,00 |
Peak Power (W) | Thirty |
Output connector | Cable |
Isolation (V) | 3.750,00 |
Approvals | CE, PSE, UL |
