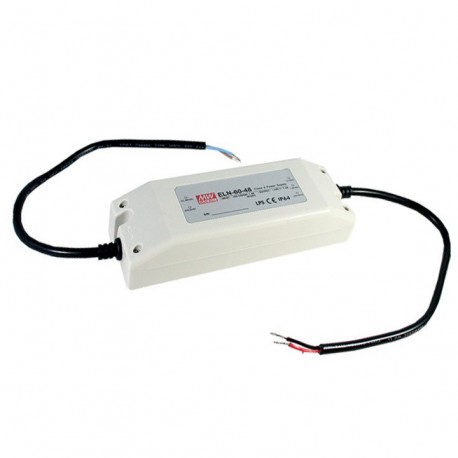

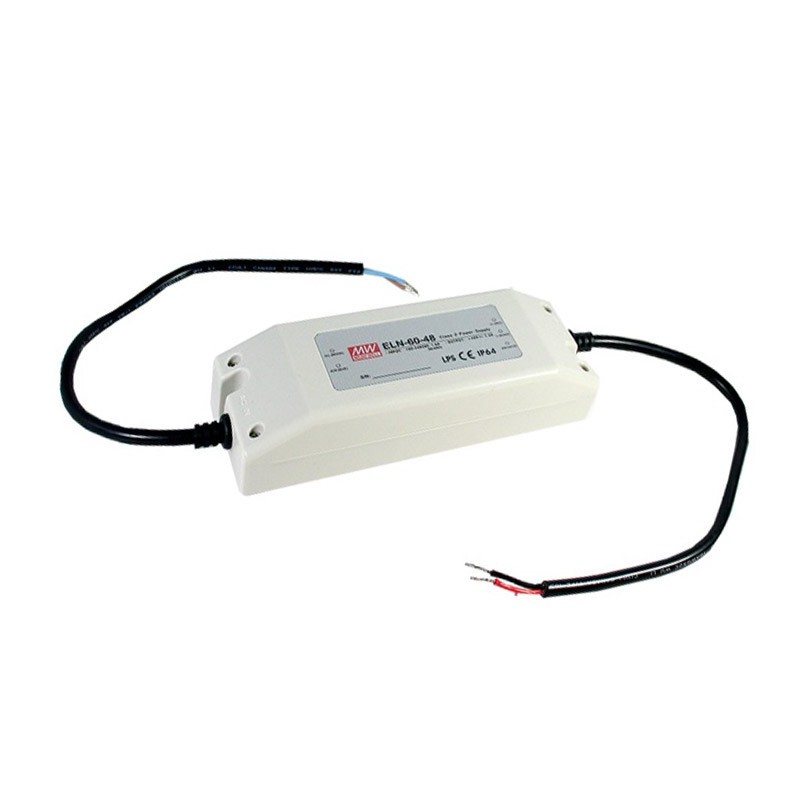

ELN-60-48
MEANWELL
1
Available Ship on today
AC-DC Single output LED driver Mix mode (CV+CC), Output 48VDC / 1.3A
LED DRIVERS > ELN
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | ELN-60-48 |
---|---|
Long Description | LED driver. Specially designed for powering LEDs directly in a steady stream. Format in plastic boxIP64. Input range90-264vac47-63Hz. Output in constant current1300mA.Adjustable by internal potentiometer SVR2 (-25%-3%). Range of output voltage with current mode constant24 to 48vdcaccording to demand load. The output voltage in voltage mode constant15vdc.Adjustable by internal potentiometer SVR1 (43,2-52,8 Vdc). Power:Of 62.5 W. Efficiency typical:88%. Potentiometers:This model incorporates 2 potentiometers inside that allows us to regulate the output voltage and the maximum output current. Input class II without grounding. Operating temperature range of caseTcfrom-20ºCup+60ºC. Dimensions (Length x Width x Height):One hundred eighty onex 61.5 x 35mm. 2 years of warranty. Manufacturer: MEAN WELL. This source is designed to work directly with LEDs (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current. The output voltage and the output current can be adjusted byknobs internal(SVR1 / SVR-2), located in the plate of the source. You can also work in voltage mode constant giving a fixed voltage of 48V if the load is powered at constant voltage and does not overcome the maximum output power. With plastic housing, designed for applications of LED-lighting and signalling mobile. Suitable for interior lighting and electronic displays. |
Country of Origin | China |
Stock | Yes |
Manufacturer | MEAN WELL |
Product type | LED Driver |
Format | Box |
Subformato | IP64 |
Applications | Industrial, Telecommunications |
Series | ELN-60 |
State | Do not Use for New Designs |
Warranty (Years) | 2,00 |
Height (mm) | 35.00 |
Width (mm) | 61.50 |
Long/Background | 181.00 |
Type of Entry CA | Single-phase |
AC input Min | 90,00 |
AC input Max | 264,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Cable |
Intensity of Minimum Output (mA) | 1.300,00 |
Intensity of Output Maximum (mA) | 1.300,00 |
Output current mA | One thousand three hundred |
Power (W) | 62,50 |
Peak Power (W) | 62.5 |
Output connector | Cable |
Isolation (V) | 3.000,00 |
Approvals | CE, UL |
