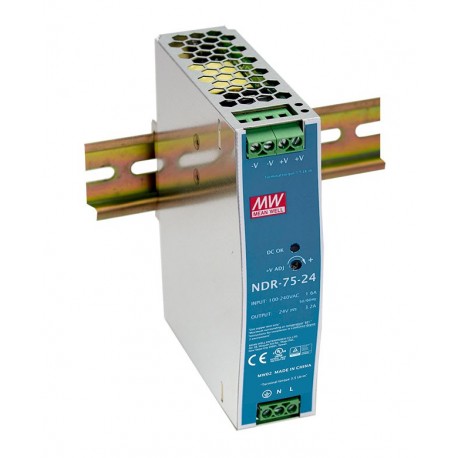

NDR-75-24 MEANWELL AC-DC Single output Industrial DIN rail power supply, Output 24VDC / 3.2A, metal case
NDR-75-24
MEANWELL
AC-DC Single output Industrial DIN rail power supply, Output 24VDC / 3.2A, metal case
DIN RAIL > NDR
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Often bought together
▲More info
▲| Name | NDR-75-24 |
|---|---|
| Long Description | Switch mode Power supply. Format for mounting on Din Rail, compact size. Range of universal Input90-264vac47-63Hz. Output voltage24vdc.(Adjustable with potentiometer 24-28Vcc). Output intensity:3.2 A. Power:76,8 W. Efficiency:88%. Working temperature: from-20up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Width x Height x depth):32 x 125,2 x 102mm. 3 years of warranty. Manufacturer: MEANWELL. The series NDR are power supplies DIN rail-metal and low-cost. With wide input range single phase have a compact size, with width between 32-85,5 mm, for installation on DIN rail TS-35 / 7,5 or 15. Comply with the rules of conducted emissions EN55022 Class B. |
| Country of Origin | China |
| Stock | Yes |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | Din Rail |
| Subformato | Narrow |
| Applications | Industrial, Telecommunications |
| Series | NDR-75 |
| State | Recommended Model |
| Warranty (Years) | 3,00 |
| Height (mm) | 125.20 |
| Width (mm) | 32.00 |
| Long/Background | 102.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Screw-Type |
| Output voltage | 24,00 |
| Power (W) | 76,80 |
| Peak Power (W) | 76.8 |
| Output connector | Screw-Type |
| Fan | Yes |
| Isolation (V) | 3.000,00 |
| Approvals | CE, UL |
