APC-8-500
MEANWELL
1
Available Ship on today

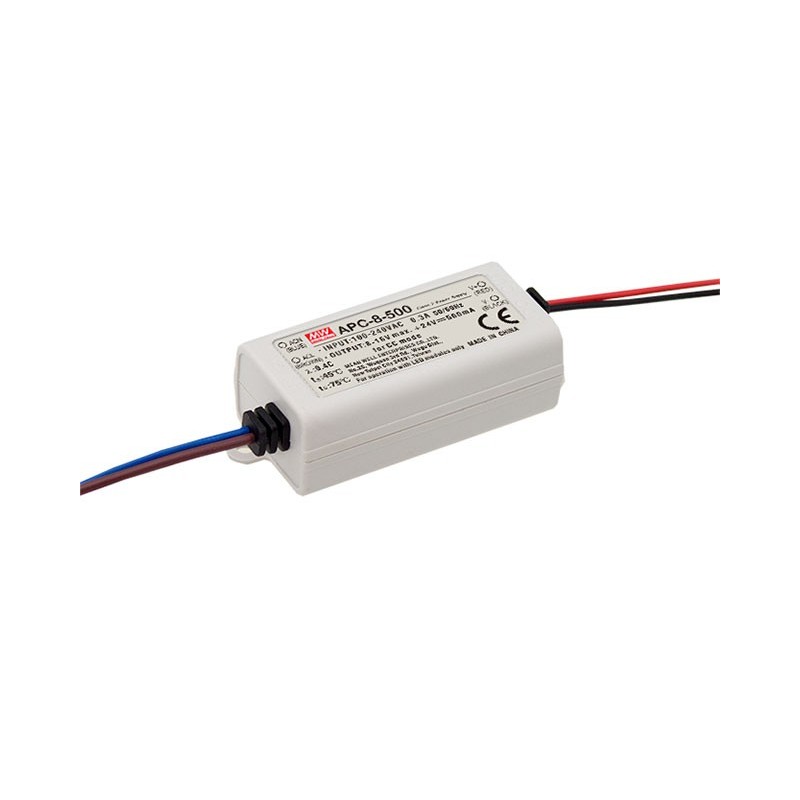

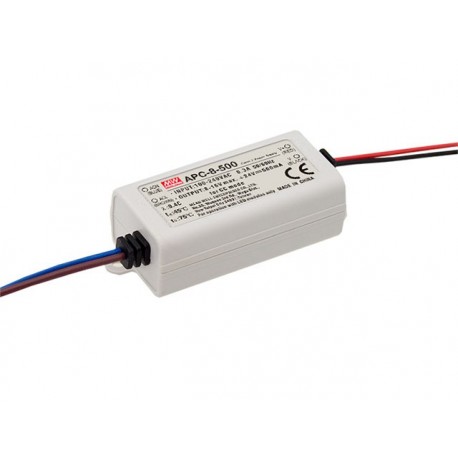

AC-DC Single output LED driver Constant Current (CC), Input 90-264VAC, Output 0.5A / 16VDC
LED DRIVERS > APC
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | APC-8-500 |
---|---|
Long Description | LED driver. Specially designed for powering LEDs directly in a steady stream. Format in plastic boxIP42. Input range90-264vac47-63Hz. Output in constant current500mA. Range of output voltage with current mode constant8 to 16Vccaccording to demand load. Power:8W. Efficiency typical:82%. Input class II without grounding. Consumption without load <0.5 W. Operating temperature range of caseTcfrom-30ºCup+70ºC. Dimensions (Length x Width x Height):60 x 30 x 23.5 mm 2 years of warranty. Manufacturer: MEAN WELL. The series APC and APC-E are LED Drivers designed to work directly with LEDs (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. With plastic housing, designed for applications of LED-lighting and signalling mobile. Have a low cost and a high reliability. |
Country of Origin | China |
Stock | Yes |
Manufacturer | MEAN WELL |
Product type | LED Driver |
Format | Box |
Subformato | IP42 |
Applications | Lighting |
Series | APC-8 |
State | Recommended Model |
Warranty (Years) | 2,00 |
Height (mm) | 23.50 |
Width (mm) | 30.00 |
Long/Background | 60.00 |
Type of Entry CA | Single-phase |
AC input Min | 90,00 |
AC input Max | 264,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Cable |
Intensity of Minimum Output (mA) | 500,00 |
Intensity of Output Maximum (mA) | 500,00 |
Output current mA | Five hundred |
Power (W) | 8,00 |
Peak Power (W) | Eight |
Output connector | Cable |
Isolation (V) | 3.750,00 |
Approvals | CCC, CE, UL |
