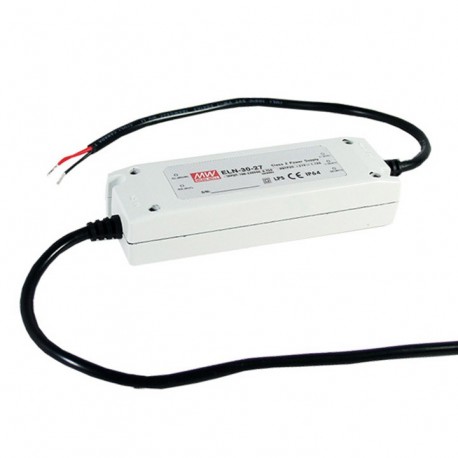

ELN-30-15D MEANWELL AC-DC Single output LED driver Mix mode (CV+CC), Output 15VDC / 2A, Dimming with 1-10VDC

LED driver.

Specially designed for powering LEDs directly in a steady stream.

Format in plastic boxIP64.

Input range90-264vac47-63Hz.

Output in constant current2A.

Range of output voltage with current mode constant3 to 15vdcaccording to demand load.

Power:30W.

Eficienciatípica:82%.

Regulationfrom 10% to 100% of the output intensity with a dimmer 1-10V. With the regulation we can not turn off the output, we can only go down to 10%.

Input class II without grounding.

Operating temperature range of caseTcfrom-20ºCup+60ºC.

Dimensions (Length x Width x Height):One hundred forty fivex 47 x 30mm.

2 years of warranty.

Manufacturer: MEAN WELL.

This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.

You can also work in voltage mode constant giving a fixed voltage of 15V if load is powered at constant voltage and does not overcome the maximum output power.

With plastic housing, designed for applications of LED-lighting and signalling mobile. Suitable for interior lighting and electronic displays.

Can be adjusted by regulatory assets or liabilities1-10V.Compatible with any dimmer 1-10V-market both assets and liabilities. Does not work with dimmers Triac dimmer cutting phase.

Some compatible models tested are:

MEAN WELL DAP-04S01 (compatible with any push button normally open)

SIMON: 75317

BJC: 5TC8 425

LEGRAND: 0784 04

ABB- "NIESSEN": N2260.9

SIEMENS: 5TC8424

EFAPEL: Model 21210

LED BOX: Model LD1160188

OSRAM: Model DIM MCU

JUNG: Model 240-10

We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver.
