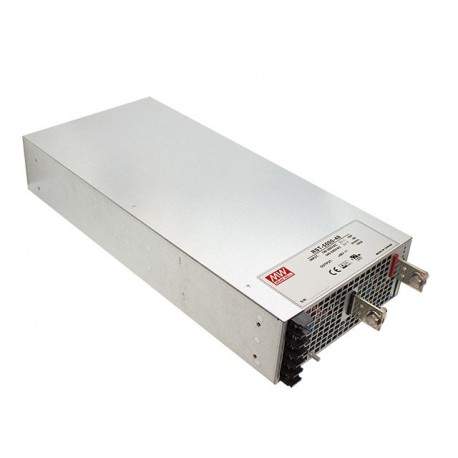

RST-5000-48
MEANWELL
1
Available Ship on today
AC-DC Single output power supply with PFC, 3 wire 196-305 or 4 wire 340-530 VAC, Output 48VDC / 105A, Current sharing 1+3 unit, Built-in Dc fan
PFC > RST
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | RST-5000-48 |
---|---|
Long Description | Switch mode power supply three-phase. Format in box. Input rangethree-phase star with neutral3x340-530Vcaor input three-phase delta without neutral 3 x 196-305Vca. 47-63Hz. You can also operate with single phase input from 196-305Vca (consult the technical data sheet in the attached documents). You need the neutral to operate on three-phase to 380V. Output voltage48vdc. Adjustable by potentiometer (47-57,6 Vcc). Output intensity105A. Range of output current 0-105A according to demand load. Factor Corrector, Power>0,95. Power:Five thousand fortyW. Efficiency typical:91%. Remote on / off. Additional output of 12V 0,1 A for power-on and remote shutdown. Function of sensing to compensate the voltage drop in the cables up to 0.3 V. Alarm output voltage to the correct DC-Ok, power supply failure AC-Fail and fan failure Fan-Fail. Voltage and Current programmable Output. Paralelizable up to 4 units. Working temperature: from-30ºCup+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:460 x 211 x 83.5. 5 years of warranty. Manufacturer: MEAN WELL. The series RST-5000 switching power supplies with three phase input. Have a high efficiency and power factor. We can parallelize up to 4 units to increase power or achieve redundancy. The output voltage can be set between 20%and 120% of the nominal output voltage by an external signal of 1-6v. The output current can also be programmed between 20% and 100% of its value payroll with an external signal of 1-5vdc. The behavior before an over-load can be set to keep the current constant by reducing the output voltage or power-off after 5 seconds of the overload. |
Country of Origin | Taiwan |
Manufacturer | MEAN WELL |
Product type | Power supply AC/DC |
Format | Box |
Subformato | Grid |
Applications | Industrial, Telecommunications |
Series | RST-5000 |
Warranty (Years) | 5,00 |
Height (mm) | 83.50 |
Width (mm) | 211.00 |
Long/Background | 460.00 |
Type of Entry CA | Three-Phase + Neutral |
AC input Min | 340,00 |
AC input Max | 530,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Screw-Type |
Output voltage | 48,00 |
Power (W) | 5.040,00 |
Peak Power (W) | Five thousand forty |
Output connector | Screw-Type |
Fan | Yes |
Alarms | Over Temperature, mains Failure, Output OK |
Isolation (V) | 3.000,00 |
Approvals | CE, UL |
