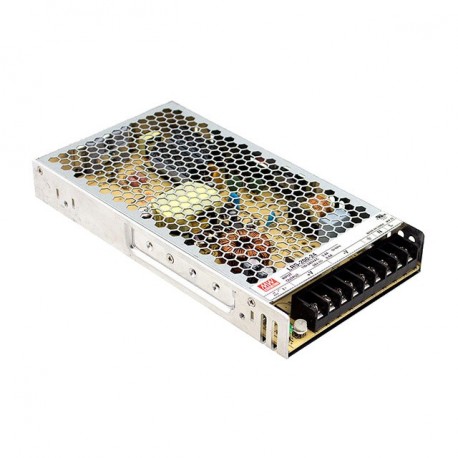

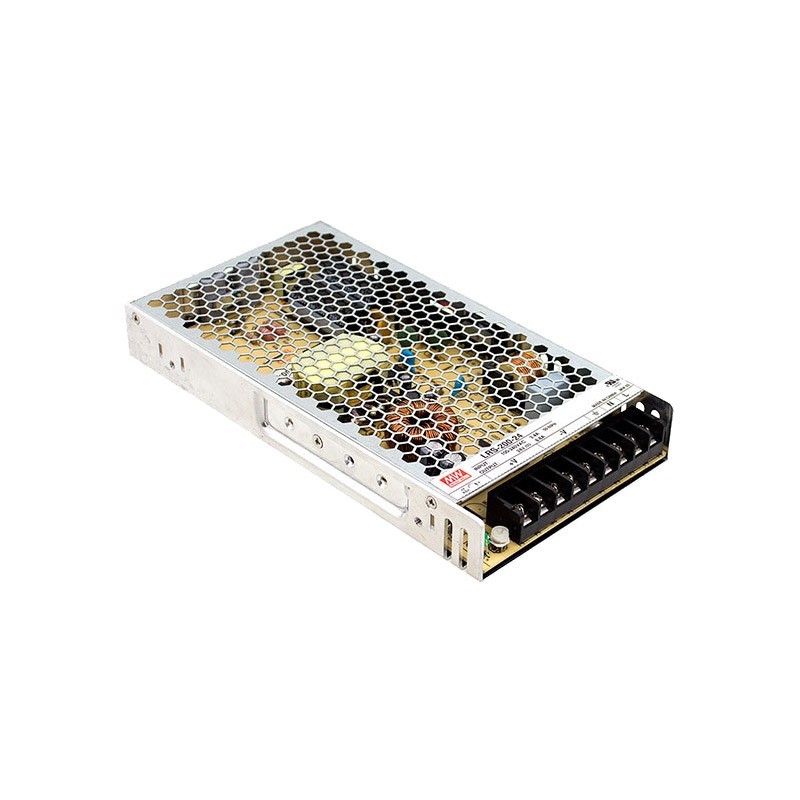

LRS-200-5 MEANWELL AC-DC Single output enclosed power supply, Input: 90-132 AC / 180-264 AC, Output: 5V / 40..

Switch mode power supply.

Compact size.

Format in box grid.

Input range selectable by switch,90-132Vca/180-264vac. 47-63Hz.

Output voltage5vdc. Adjustable by potentiometer (4,5-5,5 Vdc).

Output intensity40A. Range of output current 0-40A according to demand load.

Power:200W.

Efficiency typical:87%.

Input class I with grounding.

Consumption at no load <0,75 W.

Operating altitude up to5000 metres.

LED power indicator.

Resistant to vibrations5G.

Protection against short circuit, over load, over voltage and temperature.

Supports inputs of over-voltage of 300 Vac for 5 seconds.

Working temperature: from-25ºCup+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Length x Width x Height):215 x 115 x 30mm.

3 years warranty.

Manufacturer: MEAN WELL.

Series LRS are power supplies input selectable by switch (switch). Format in box grill size compact (profile 1U). With high efficiency, reliability and long life.

These sources are designed for applications in industrial, automotive, mechanical equipment and household electrical appliances. Can operate in altitudes above 5000 meters (see the curve for temperature drift).

This power supply does not meet the requirements of harmonic current as described in the regulations EN61000-3-2. Do not use this power supply in the following conditions:

• Equipment used within the European Union.
• Computers connected to the public network with a nominal voltage of 220vac.
• If the power supply is:
  • installed on equipment with input power, average, or continuous, top to 75W
  • or belong to part of a lighting system

Exception:

The power sources used in the following equipment do not have to comply with the standards EN61000-3-2.

• Professional equipment with a nominal input power greater than 1000W.
• Heating elements controlled with a nominal power less than or equal to 200W.
