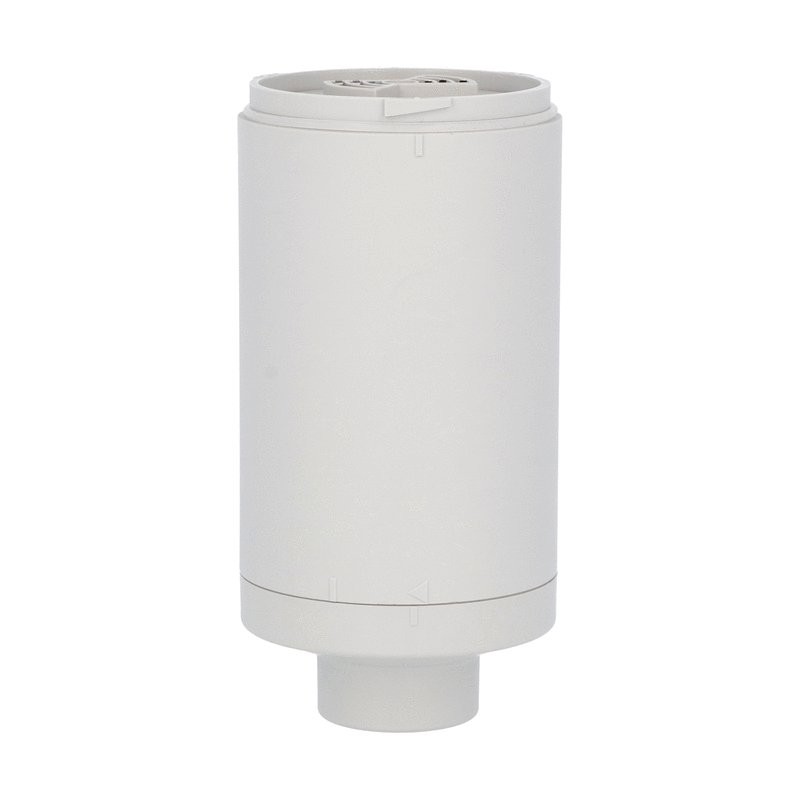

LTN70MW024 LOVATO WIRING MODULE 12-24VDC 70MM
LTN70MW024
LOVATO ELECTRIC
WIRING MODULE 12-24VDC 70MM
Wiring module Ø70mm. 12…24VDC
Signal towers and beacons - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | LTN70MW024 |
| Weight [g] | 170 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 080X080X150 |
| Volume [cm³] | 960 |
| Bar code [EAN13] | 8013975294086 |
| HS Code | 83180040 |
Dimensions
Wiring diagram
Certifications:
cULus
cULus
Compliance:
IEC/EN/BS 60947-5-1
IEC/EN/BS 60947-1
UL508
CSA C22.2 n° 14
IEC/EN/BS 60947-5-1
IEC/EN/BS 60947-1
UL508
CSA C22.2 n° 14
| Product designation | Signal tower Ø70mm/2.75" | |||
| Product type designation | LTN70 | |||
| General characteristics | ||||
| Diameter | mm - inch | 70 / 2.75 | ||
| Supply voltage (DC) | V | 12...24 | ||
| Power consumption | VA | 1 | ||
| Mechanical features | ||||
| Terminals screw | Spring terminals | |||
| Conductor section | ||||
| AWG/Kcmil | ||||
| min | 16 | |||
| max | 24 | |||
| IEC | ||||
| min | mm² | 0.25 | ||
| max | mm² | 1.5 | ||
| Weight | g | 170 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -30 | ||
| max | °C | +50 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC001154 - Stand for signal tower without tube | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
