337225 LEGRAND XL3S 160 RECESSED METAL 5X24M
337225
LEGRAND
XL3S 160 RECESSED METAL 5X24M

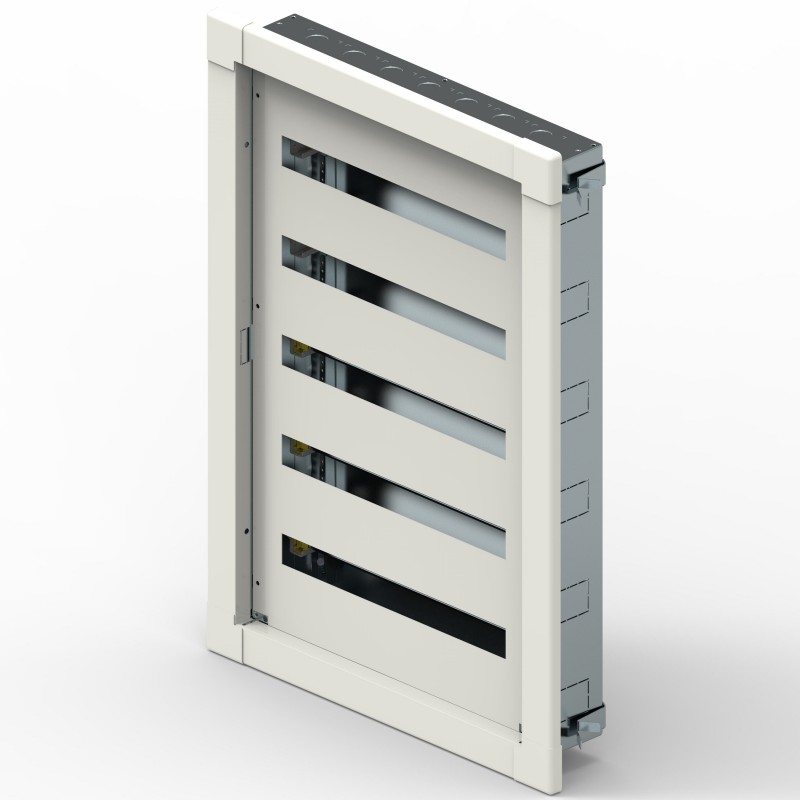

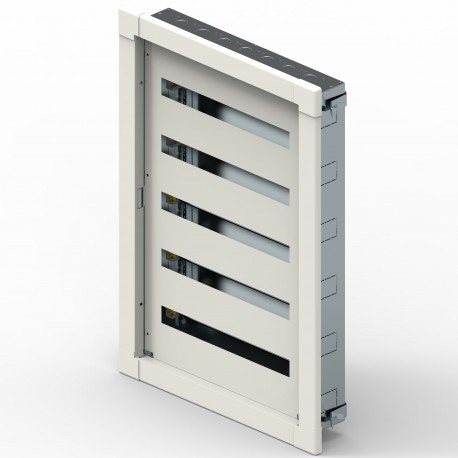

XL³ S 160 flush-mounting 24-modules per row cabinet with fixing lugs - RAL 9003 - 5 rows - 120 modules - 962x667x138 mm
Recessed distribution box XL³ S 160 - modular - 5 rows - 24mod
Distribution boards > Small distribution board
XL3 S 160 ENERGY DISTRIBUTION CABINETS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)95.475
- Weight (g)20 000.00
- Supplied with fixing lugs
- Faceplates: RAL 9003
- Number of rows : 5
- Number of modules : 120
- Height : 962 mm
- Width : 667 mm
- Depth : 138 mm
- Cabinets supplied with rails fitted (150 mm fixing centres) and full height faceplates
- Doors and terminal blocks to be ordered separately
- Take DPX³ 160 and modular protection devices
- Used to create assemblies certified IEC 61439-2 and -3
- IP 40 with door
- IP 30 without door
- Cut-outs in top and bottom for feeding cables through
- Can take Lina 25 ducting
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 811 mm |
| Degree of protection (IP) (EF005474) | IP30 |
| DIN-rail (EF001134) | Yes |
| Housing material (EF001596) | Steel |
| Mounting method (EF000003) | Flush mounted |
| Number of rows (EF000266) | 5 |
| RAL-number (EF000116) | 9003 |
| Built-in depth (EF000218) | 103 mm |
| With mounting plate (EF000118) | Yes |
| Extension possible (EF001088) | Yes |
| EMC-version (EF001062) | No |
| Depth (EF000049) | 135 mm |
| Colour (EF000007) | White |
| Width (EF000008) | 740 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 337225 EN_337225.pdf | 2 Mbytes |
 |
