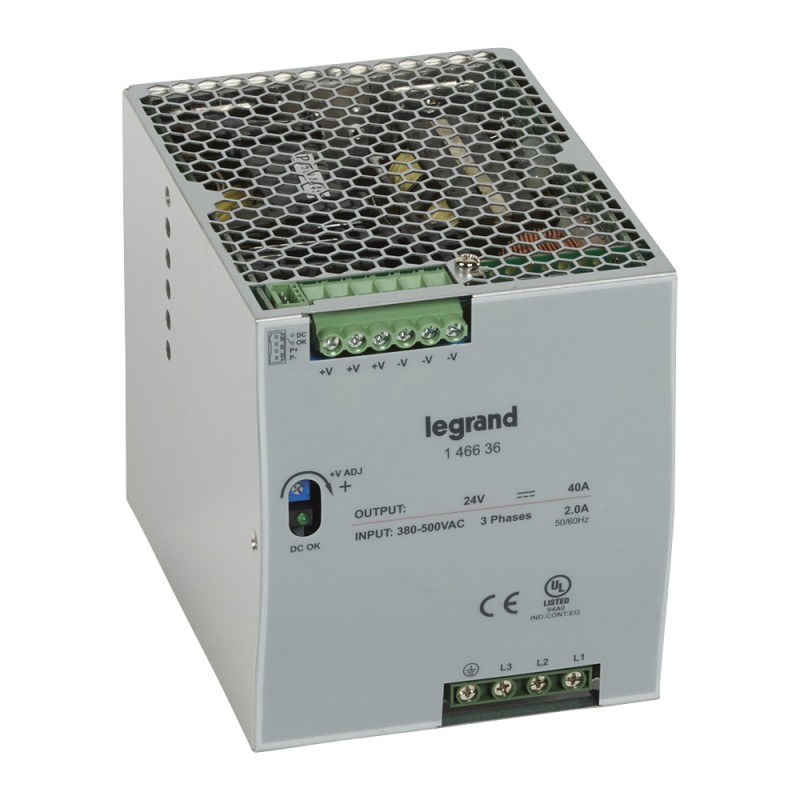

146636 LEGRAND Stabilised switched modules power supply three-phase 960 W output 24 V 960 W. Switched-mode d..
146636
LEGRAND
Stabilised switched modules power supply - three-phase - 960 W - output 24 V= - 960 W. Switched-mode direct current power supply with stabilized 24VDC output adjustable via front potentiometer. Three-phase 960W unit with integrated PFC filter, short-circuit and overload protection.
INDUSTRIAL VARIOUS CONTROL
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Description
Switched-mode direct current power supply with stabilized 24VDC output adjustable via front potentiometer. Three-phase 960W unit with integrated PFC filter, short-circuit and overload protection.
Product charateristics
- Stabilised switched mode power supplies - single/two - phase and three - phase - Conforming to standards UL 508, IEC EN 60950 - 1 and IEC EN 61204 - 3 - UL - approved in USA (and Canada for Cat. Nos. 1 466 54/63/82) - Operating frequency : 50/60 Hz - Output voltage present indicator - Potentiometer for adjusting the output voltage on front panel - Integrated short - circuit and overload protection - With signal or relay contact for feedback on the status of the active output voltage - Connection with copper conductors only - For mounting on a symmetrical rail depth 7.5 mm and 15 mm
- Three - phase 960 W - Operation possible on 2 phases (80% of the Nominal power) - Low harmonic pollution due to the integrated PFC filter - Adjustable output voltage - Aluminium casingInput voltage : 3 x 380 to 500 V~ Output voltage : 24 V= - Nominal power : 960 W - Nominal rating : 40 A - Setting range : 24 to 28 V - Width : 110 mm
Technical characteristics
| Voltage type (supply voltage) | AC/DC |
|---|---|
| 1st secondary output voltage (Min-Max) | 24-48 V |
| Max. output current 1 | 40 A |
| Secondary voltage adjustable | Yes |
| Nominal value output voltage 1 | 48 V |
| Nominal value output current 1 | 40 A |
| Short-circuit-proof | Yes |
| Rated supply voltage AC 50 Hz (Min-Max) | 380-500 V |
| Output voltage stabilized | Yes |
| Power output | 960 W |
| Stabilized | Yes |
| Type of electric connection | Screw connection |
| Suitable for rail mounting | Yes |
| Suitable for wall mounting | No |
| Suitable for distribution board | No |
|---|---|
| Built-in width | 110 mm |
| Direct mounting possible | Yes |
| Width | 110 mm |
| Height | 125 mm |
| Depth | 113 mm |
| Suitable for safety functions | Yes |
| Operating / setting temperature (Min-Max) | -30-50 °C |
| Frequency (Min-Max) | 50-60 Hz |
| Electric supplying direction | From the bottom |
| Terminal marking indication | Yes |
| Terminals capacity (Min-Max) | 4-4 mm² |
| Label space/information surface | No |
