73220400 UNITRONIC SPIRAL LiF2Y11Y 5X0,34/500 LAPP UNITRONIC SPIRAL LiF2Y11Y 5X0,34/500
73220400
UNITRONIC SPIRAL LiF2Y11Y 5X0,34/500
LAPP
UNITRONIC SPIRAL LiF2Y11Y 5X0,34/500

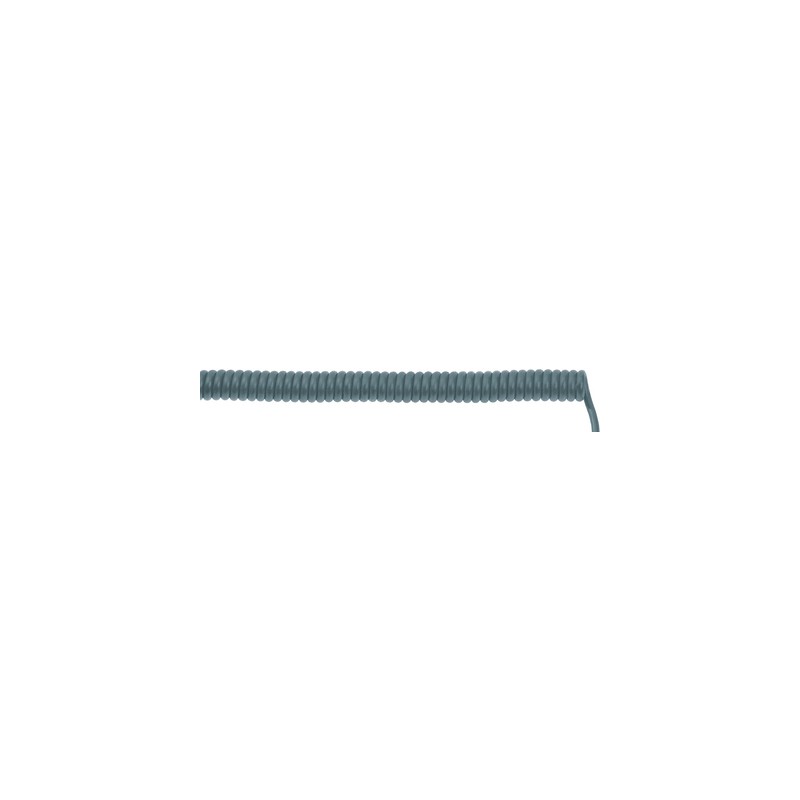

UNITRONIC® SPIRAL LiF2Y11Y
Spiral cables
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲SPIRAL CABLE UNITRONIC® SPIRAL LiF2Y11Y - PUR, abrasion resistant, data and control cable for use in data processing, measurement and control engineering
- Uncrowded spiral cable with small cross sections
- High recovery forces
- PUR outer shell
proceeds
- Extended lengths up to 4 times the length of the unexe extended spiral
- Suitable for transportable machines and appliances
- Transmission of control and measurement signals
Scope of use
- For requirements demanded in electronic applications
- In measurement, regulation and control engineering
- Measuring and handling equipment
- Transport and transmission systems.
Product features
- Abrasion and cut resistance
- Highly flexible
- Halogen-free and non-flame propagator
Product composition
- Base: UNITRONIC® FD P plus
- Conductor made of bare copper wires
- Conductor isolation: polyolefin base
- Outer shell: polyurethane (PUR) mixture
- Outer cover color: gray
- Length of straight ends: 1st end = 200 mm, 2nd end = 600 mm
- Versions without the required LAPP designation, but with other lengths, end lengths, and end shapes available on demand
ETS Classification 5
- ETIM 5.0 Class-ID: EC000247
- ETIM Class 5.0 Description: Spiral Cable
ETTIM Rating 6
- ETIM 6.0 Class-ID: EC000247
- ETIM 6.0 Class-Description: spiral cable
Driver Identification Code
- DIN 47100
Working crest tension
- 250 V (not suitable for power applications)
Driver training
- Extra-thin wire, according to VDE 0295 CIase 6 / IEC 60228 CIase 6
Test voltage
- 1200 V
Temperature range
- Flexible use: -5°C to +50°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
