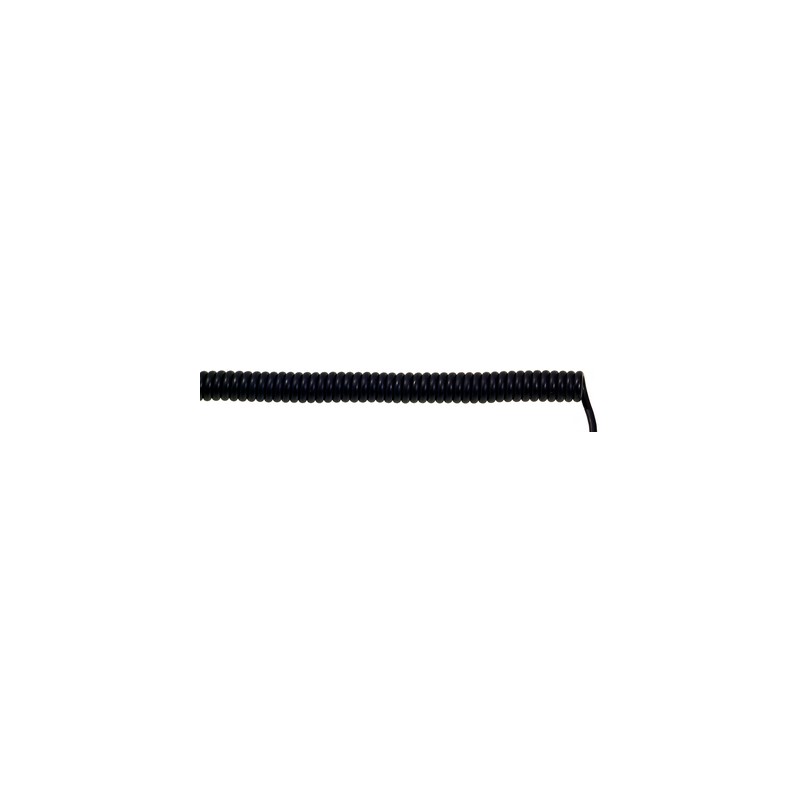

73220209 UNITRONIC SPIRAL 3X0,14/500 LAPP UNITRONIC SPIRAL 3X0,14/500

Benefits

• Overall screening prevents high frequency interference and guarantees accurate signal transmission
• Extended lengths of up to 4 times the unextended spiral length

Application range

• In measurement and control engineering
• Wherever screened cables with smallest dimensions are required
• For requirements of electronic applications
• Handling and measurement equipment
• Conveyor and transport systems

Product features

• Abrasion and cut-resistant
• Very high flexibility

Product Make-up

• Basis: UNITRONIC^®LiYD11Y
• Conductor made of bare copper wires
• Core insulation: Based on PVC
• Screening: wrapped with braided copper wires
• Outer sheath: PUR compound
• Length of straight ends: 1st end = 200 mm, 2nd end = 600 mm
• Versions without the mandatory LAPP designation, but with other solid lengths, end lengths and end forms available on request

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000247
• ETIM 5.0 Class-Description: Spiralized cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000247
• ETIM 6.0 Class-Description: Spiralized cable

Core identification code

• DIN 47100

Peak operating voltage

• 250 V (not for power transmission)

Conductor stranding

• Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6

Test voltage

• 1200 V

Temperature range

• Flexing: -5°C to +50°C
