7027074 LAPP ÖLFLEX TRUCK 170 FLRYY 4X6+1X1,5
7027074
LAPP
1 m.

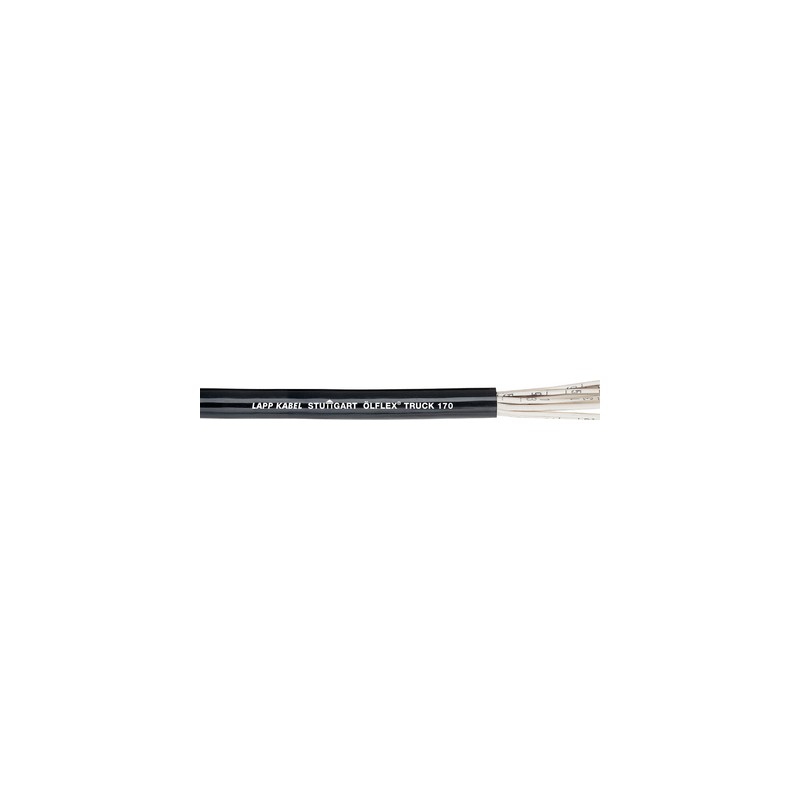

ÖLFLEX TRUCK 170 FLRYY 4X6+1X1,5
ÖLFLEX® TRUCK 170 FLRYY
Control cables for special applications
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Benefits
- Special ADR approval
- ADR approval enables use in vehicles transporting hazardous goods
Application range
- For commercial verhicles
- Wiring of electrical equipments in all trailers and semi-trailers
Product features
- UV-resistant
- Resistant to cold temperatures
- Resistant to most oils, chemicals and weather conditions
Norm references / Approvals
- ISO 4141 and DIN/ISO 6722
Product Make-up
- Conductor made of bare copper wires
- Core insulation: Based on PVC
- Special PVC-based outer sheath
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
Core identification code
- ISO 4141-3
Capacity of data pairs
- Related to length between cores, max. 50 pF/m and between each data transmission core and all other cores in the cable, max. 100 pF/m
Conductor stranding
- Fine wire according to DIN/ISO 6722
Minimum bending radius
- 12 x outer diameter
Nominal voltage
- 60 V
Test voltage
- 5 kV rms for at least 5 min.
Temperature range
- Area of application, Class A
- Fixed installation: -40°C to +85°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 7027074 7027074 EN_7027066.pdf | 345 Kbytes |
|
