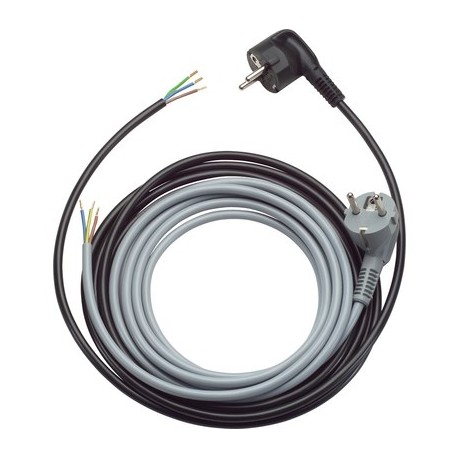

70261134 ÖLFLEX PLUG H03VV-F 3G0,75/2000 WH LAPP ÖLFLEX PLUG H03VV-F 3G0,75/2000 WH View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

70261134 ÖLFLEX PLUG H03VV-F 3G0,75/2000 WH LAPP ÖLFLEX PLUG H03VV-F 3G0,75/2000 WH

70261134

ÖLFLEX PLUG H03VV-F 3G0,75/2000 WH

LAPP

25

ÖLFLEX PLUG H03VV-F 3G0,75/2000 WH

ÖLFLEX® PLUG H03VV-F Net Connection Cable*

More details


Batteries, chargers and power cords > Power cord

Spiral cables

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info

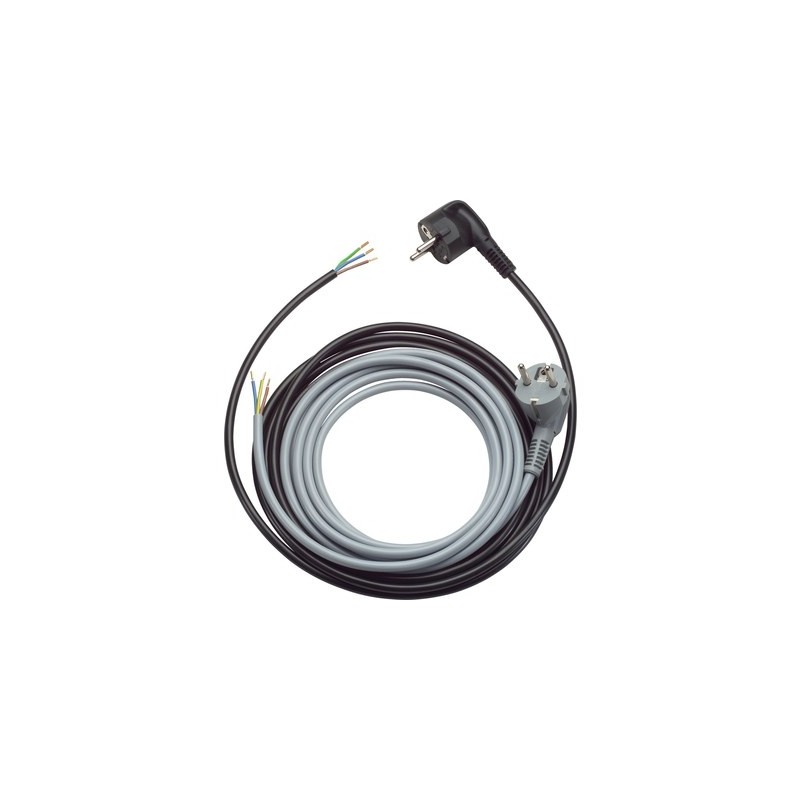

ÖLFLEX® PLUG H03VV-F Net connecting cable, PVC, 3G0,75, 1.end angular earthing-type plug with double earthed contact/2.end IEC coupling or dismantled

Other colours and designs are available upon request

Application range

  • Electrical devices

Product features

  • For additional information regarding international plugs, please refer to our cable configurator at www.lappkabel.de
  • Apart from the cable related application restrictions to be paid attention to according to the application standard EN 50565-2 for this PVC cable H03VV-F, the fact that brighter outer sheath colours deviating from black significantly reduce the UV resistance of the outer sheath and, thus, the outdoor usability of the entire, finished cable has to be respected, too

Product Make-up

  • 1st end: Gated, rectangular earthing-type plug with double earthing contact
  • Other end: 30 mm dismantled, with protection sleeves for the ends of the conductor
  • Alternatively, on request: 1st end with moulded angular earthing-type plug with twin earthed contact, 2nd end with moulded, straight IEC coupling (see image)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001576
  • ETIM 5.0 Class-Description: Power cord

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001576
  • ETIM 6.0 Class-Description: Power cord

Core identification code

  • HD 308/VDE 0293-308: 3-core with protective conductor

Conductor stranding

  • Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Nominal voltage

  • U0: 250 V AC

Test voltage

  • 2000 V

Protective conductor

  • G = with GN-YE protective conductor

Temperature range

  • 5°C to 60°C

Datasheet - PDF
