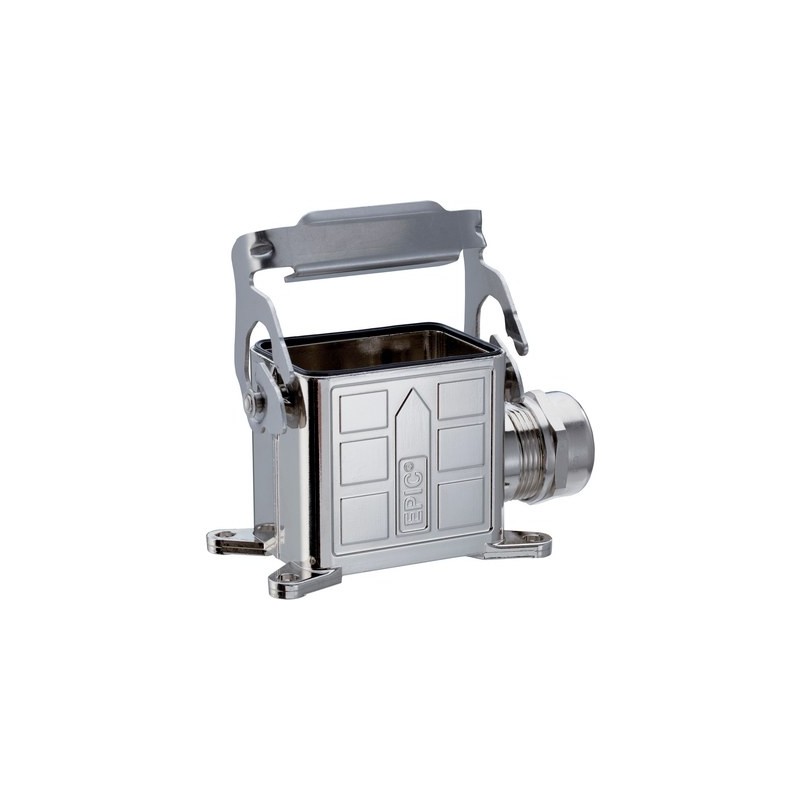

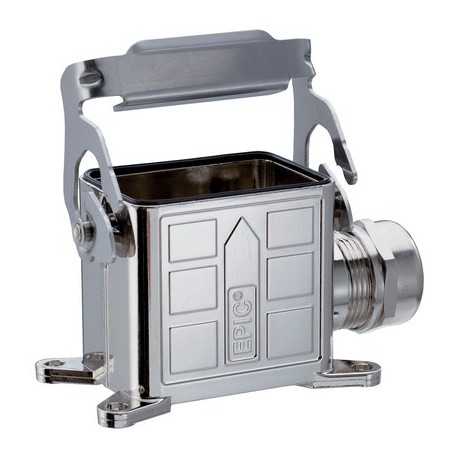

70250268 EPIC ULTRA H-B 6 SGR LB 6-13 BRUSH LAPP EPIC ULTRA H-B 6 SGR LB 6-13 BRUSH (1)
70250268
EPIC ULTRA H-B 6 SGR LB 6-13 BRUSH
LAPP
EPIC ULTRA H-B 6 SGR LB 6-13 BRUSH (1)
EPIC® ULTRA H-B 6 SGR LB
EPIC rectangular
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲RECTANGULAR connector housing EPIC®, CEM protection, corrosion resistant, UL50E, Nema250
- EMC Protection (CEM)
- Corrosion resistant
- Made in Germany
proceeds
- Optimal 360º screen, low resistance
- Universal use thanks to high corrosion resistance and high protection against environmental influences.
- Space saving thanks to compact dimensions
- Fast installation compared to other existing systems
- Able to withstand large mechanical forces
Scope of use
- In critical EMC environments
- For fixed and flexible applications in the field of machinery and wind energy industry
- Construction machinery
- Construction of electric motors
Product features
- Housings indicating "BRUSH", come with the BRUSH type contact for the screen contact.
- Pluggable to standard housings
- Corrosion resistant according to DIN EN 6988
- Salt spray test according to IEC 68-2-52, intensity 2
- Salt splash test according to DIN EN ISO 9227, NSS method, test period 480 hours
ETS Classification 5
- ETIM 5.0 Class-ID: EC000437
- ETIM Class 5.0 Description: Housing for Industrial Connectors
ETTIM Rating 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: housing for industrial connectors
Material
- Housing: nickel-plated cast zinc
Levers and screws: stainless steel
Sealing: NBR - Cable glands
Body: nickel-plated brass
Insert: PA
Sealing: special elastomer
Degree of protection:
- IP 65
- NEMA 250, UL50E: 12, 4, 4X (closed)
Temperature range
- from -40 °C to +100 °C
Datasheet - PDF
