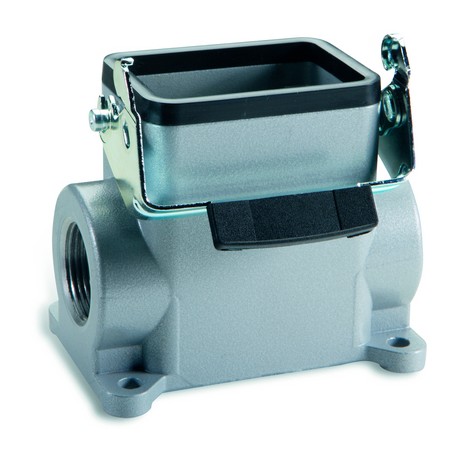

70005200 H-B 6 SGRH 21 ZW. BOX MOUNT BASE LAPP H-B 6 SGRH 21 ZW. BOX MOUNT BASE
70005200
H-B 6 SGRH 21 ZW. BOX MOUNT BASE
LAPP
10
H-B 6 SGRH 21 ZW. BOX MOUNT BASE
EPIC® H-B 6 SGRH-LB
Connectors > Housing for rectangular connectors
EPIC rectangular
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info

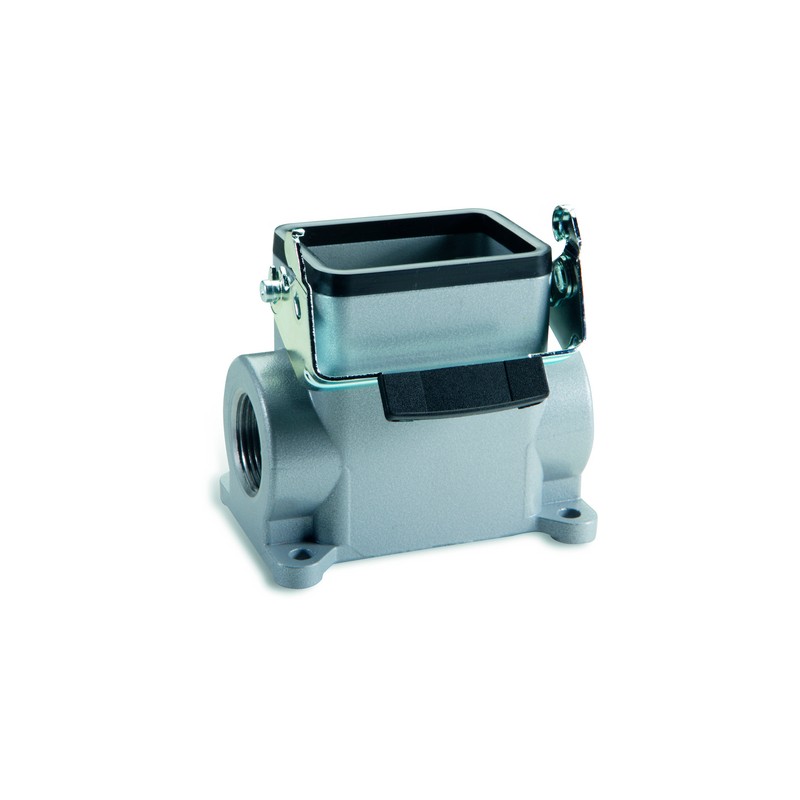

▲The metal housing is the smallest body in the H-B series and is suitable, for example, for control systems. The high housing has 1 cable entry.
- More interior space for wiring
- Protection rating UL50E tested
Benefits
- The smallest housing out of the H-B series. For inserts with high electrical properties
Application range
- Plant engineering
- Control engineering
- Plastics industry
Product features
- Surface-mount base, high version
- Single lever
- 1 cable entry
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 70005200 H-B 6 SGRH 21 ZW. BOX MOUNT BASE 70005200 EN_79005400.pdf | 367 Kbytes |
|
