61814190 SILVYN HTDL 3/8'' 12,6x17,8 BK LAPP liquidtight conduit with UL/ CSA approval with interlocked prof..
61814190
SILVYN HTDL 3/8'' 12,6x17,8 BK
LAPP
60
SILVYN HTDL 3/8'' 12,6x17,8 BK
SILVYN® HTDL
Protective hose systems > Protective metallic hose
SILVYN cabling
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
More info

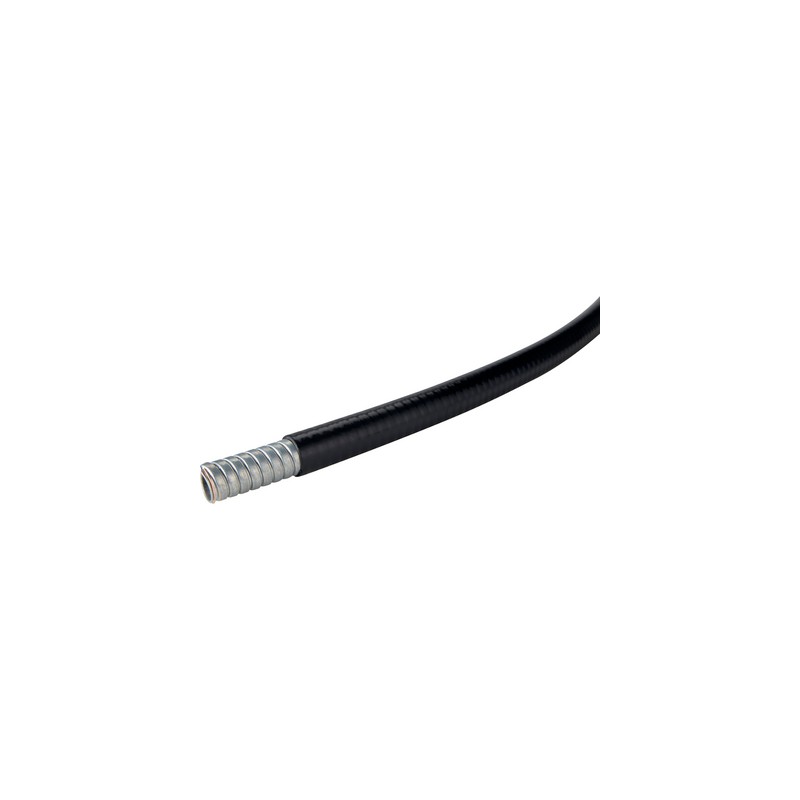

▲SILVYN® HTDL is a liquidtight conduit with UL/ CSA approval with interlocked profile and a PVC jacket
Benefits
- Protects against liquids
- High-tensile
- Robust
- High crush-resistance
Application range
- Mechanical engineering
- Plant engineering
- Transformer construction
- Railway applications
- Exporters
Product Make-up
- Spirally-wound heavy metal protective conduit with roughened profile
- Plastic outer sheath
Note
- With continuous copper conductor for earthing in the case of the nominal sizes 3/8" up to and including 1 1/4". Heavy metal core insert made of galvanised steel strip with special heat and sunlight-resistant plastic sheath. In the ex-range, usable according to NEC 501-4B.
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001179
- ETIM 5.0 Class-Description: Protective metallic hose
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001179
- ETIM 6.0 Class-Description: Protective metallic hose
Norm references / Approvals
- UL 360
- NEC 501-4B
Colour delivered
- Black
Material
- Metal with PVC-compund sheath
Temperature range
- -40°C to +105°C
Short-term: up to +120°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 61814190 SILVYN HTDL 3/8'' 12,6x17,8 BK 61814190 EN_61814190.pdf | 330 Kbytes |
|
