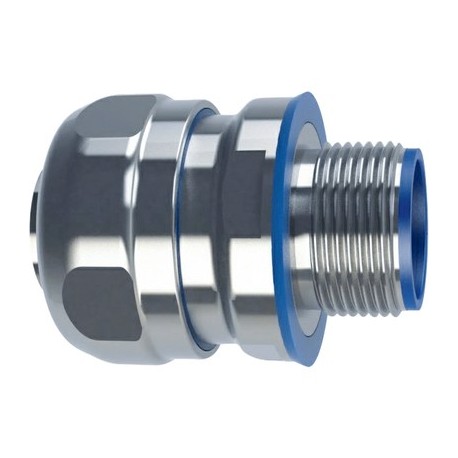

55510702 SILVYN HYGIENIC M25x1,5 LAPP SILVYN HYGIENIC M25x1,5
55510702
SILVYN HYGIENIC M25x1,5
LAPP
SILVYN HYGIENIC M25x1,5
SILVYN
Protective hose systems > Screw connection for protective metallic hose
SILVYN cabling
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
More info
▲The stainless steel fitting SILVYN® HYGIENIC is designed in accordance with the industrial hygiene requirements
- Ideal for hygienic critical areas - resistant, edge-free, robust and reliable
- No gaps, voids or outer lying thread - so no risk of contamination of food machines, facilities or components
Benefits
- Hygienic Design for ideal cleaning results
- Smooth surfaces and no edges prevent the accumulation of fluids and formation of micro-organisms
Application range
- Food machinery, equipment and components
- Pharmaceutical industry
- Mechanical engineering
Product features
- High chemical and thermal stability with very aggressive media such as Detergents and disinfectants, acids and alkalis during cleaning processes etc.
Norm references / Approvals
- DIN EN 1672-2
Guideline for the design of machinery - DIN EN ISO 14159
Security of machinery – Hygienic requirements for the design of machinery
Product Make-up
- Material and shape provide an easy and safe cleaning
- By the blue coloring of the sealing material clearly distinguishable from foodstuffs
- Rounded key areas for mounting with standard tools
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001180
- ETIM 5.0 Class-Description: Screw connection for protective metallic hose
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001180
- ETIM 6.0 Class-Description: Screw connection for protective metallic hose
Norm references / Approvals
- IEC EN 61386-23
Material
- Body: Stainless Steel (Grade 316)
Insert: Nickel Plated Brass
Inner seal: Polyamide 6
Sealing material: Special Elastomer
Protection rating
- IP66
IP67
IP68 (2 bar)
IP69
Temperature range
- -50°C to +135°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 55510702 SILVYN HYGIENIC M25x1,5 55510702 EN_55510702.pdf | 592 Kbytes |
 |
