55502678 SILVYN US PG 36 AS-P LAPP SILVYN US PG 36 AS-P
55502678
SILVYN US PG 36 AS-P
LAPP
20
SILVYN US PG 36 AS-P
SILVYN® US
Protective hose systems > Screw connection for protective metallic hose
SILVYN cabling
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info

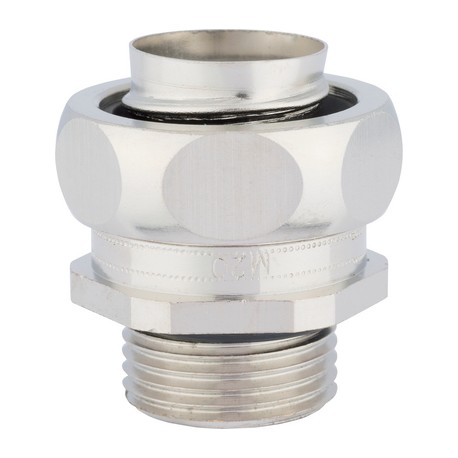

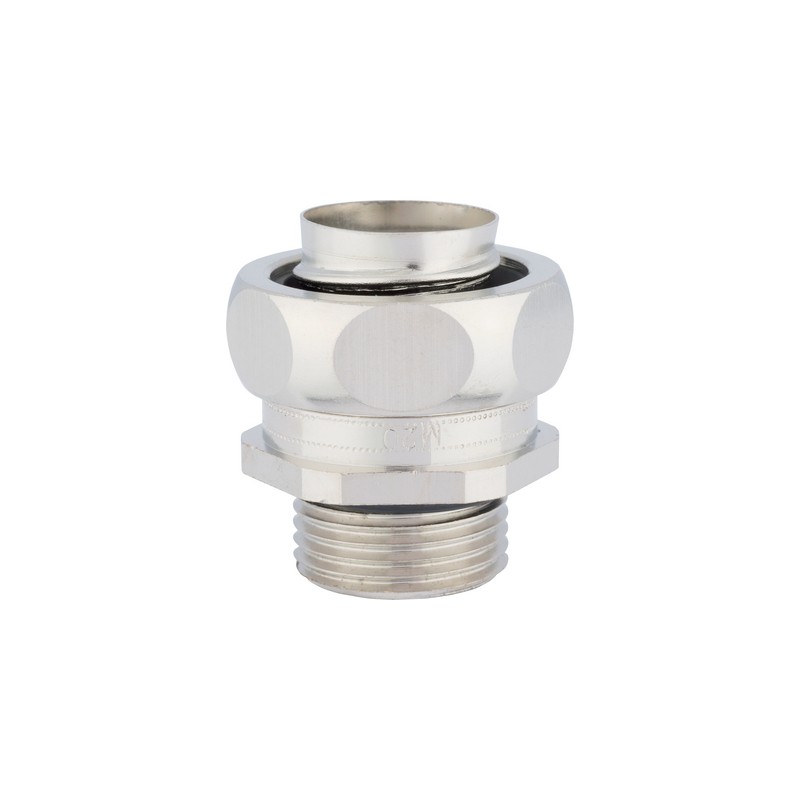

▲SILVYN® US is a PG threaded nickel-plated brass conduit fitting that offers IP40 / IP54 / IP66 protection degree depending on the used conduit
Benefits
- High tensile strength
- Space-saving
- Vibration protection
- All-purpose
Application range
- In combination with protective conduit:
- SILVYN®AS/AS-P/EDU-AS/EMC AS-CU
- Mechanical engineering
- Plant engineering
Product features
- Compact design
Product Make-up
- PG connection thread
- Hexagonal collar
- Threaded sleeve
- Sealing element
- Cap nut
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001180
- ETIM 5.0 Class-Description: Screw connection for protective metallic hose
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001180
- ETIM 6.0 Class-Description: Screw connection for protective metallic hose
Material
- Body: nickel-plated brass
Sealing ring: TPE
Protection rating
- IP 40 (with SILVYN® AS, EDU-AS and EMC AS-CU)
IP 65 (with SILVYN® AS-P)
Temperature range
- -40°C to +125°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 55502678 SILVYN US PG 36 AS-P 55502678 EN_55502662.pdf | 561 Kbytes |
|
