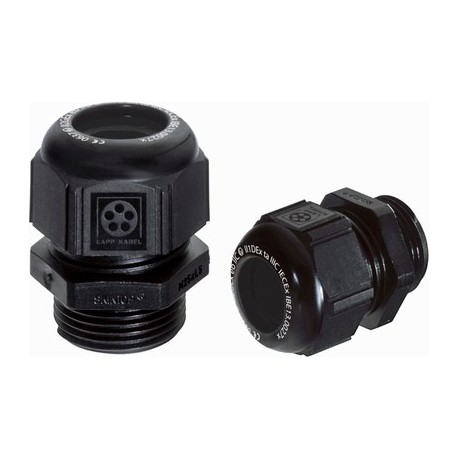

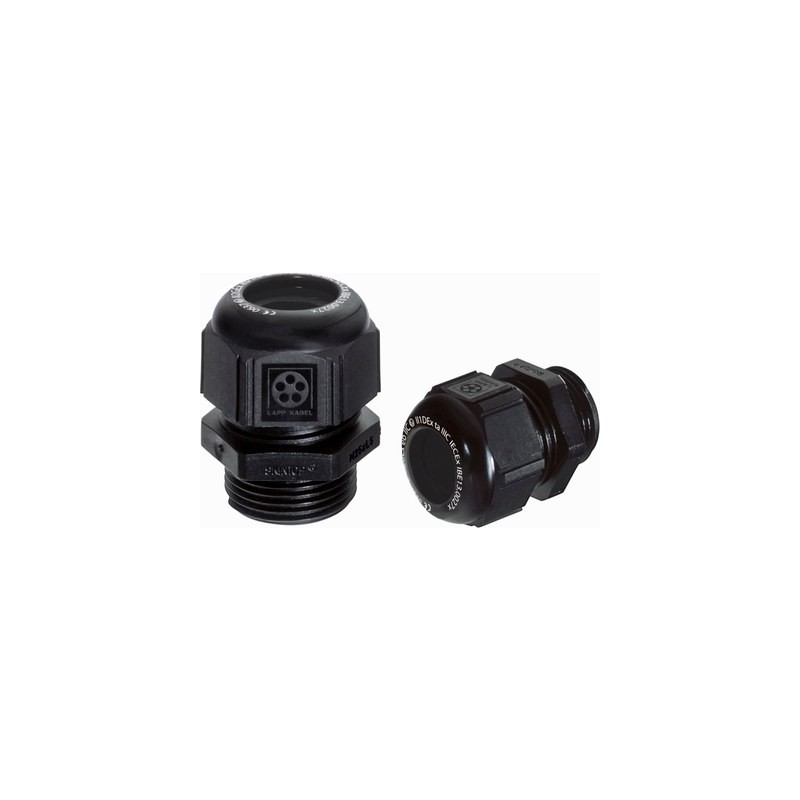

54115260 SKINTOP K-M 50x1,5 ATEX plus BK LAPP SKINTOP K-M 50x1,5 ATEX plus BK
54115260
SKINTOP K-M 50x1,5 ATEX plus BK
LAPP
5
SKINTOP K-M 50x1,5 ATEX plus BK
SKINTOP® K-M ATEX plus
Cable and wire entry systems > Cable gland
SKINTOP cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲SKINTOP® K-M ATEX plus, metric plastic cable gland with high degree of protection, cold impact resistance, explosion-proof
Benefits
- High degree of protection
- Cold impact resistance
- High strain relief
- Wide, variable clamping ranges
- Permanent vibration protection
Application range
- Devices, machines and apparatus of enhanced safety protection type "e", dust ignition proof "t"
- Equipment group II / Category 2G+1D
- For mobile applications in offshore and marine industries
- Chemical and petrochemical industry
Product Make-up
- Metric connection thread acc. to DIN EN 60423
- Basis for technical information DIN IEC 62444
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Caution
- Refer to the instruction leaflet for the installation dimensions and torques
Certifications
- CE 0637 Ex II 2G
Ex eb IIC Ex II 1D
Ex ta IIIC
IECEx IBE 13.0027X
Colour delivered
- Black (RAL 9005), UV-resistant
Material
- Body: special polyamide
Seal: special elastomer
O-ring: CR
Tests
- DIN EN 60079-0
DIN EN 60079-7
DIN EN 60079-31
Protection rating
- IP 68 - 10 bar
Temperature range
- -20°C to +80°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 54115260 SKINTOP K-M 50x1,5 ATEX plus BK 54115260 EN_54115220.pdf | 431 Kbytes |
|
