> LAPP>SKINTOP cabling>54115210 SKINTOP K-M 16x1,5 ATEX plus BK LAPP SKINTOP K-M 16x1,5 ATEX plus BK
Previous Product Next Product

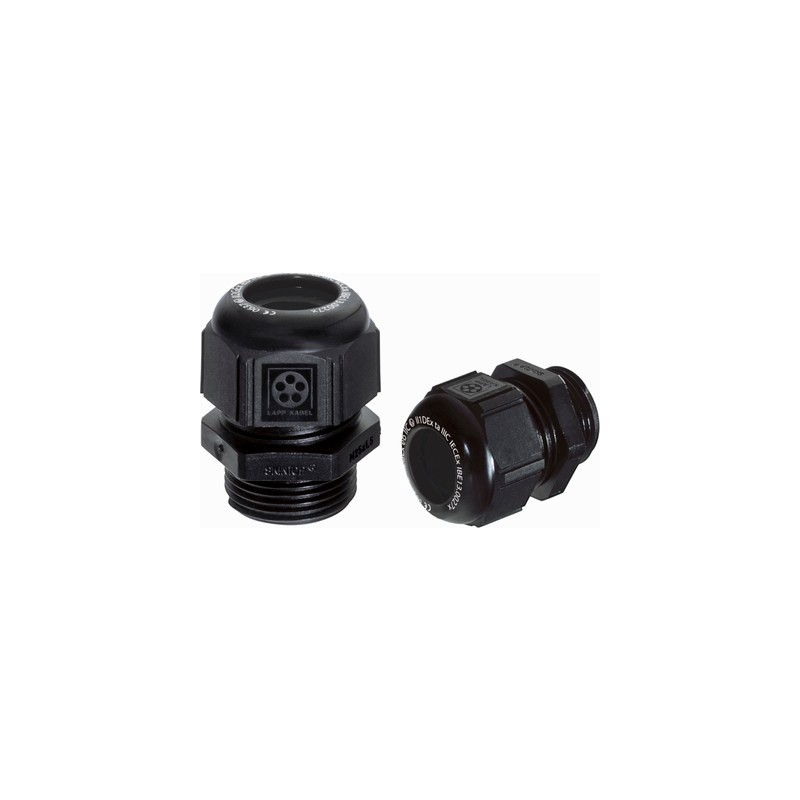

54115210 SKINTOP K-M 16x1,5 ATEX plus BK LAPP SKINTOP K-M 16x1,5 ATEX plus BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

54115210 SKINTOP K-M 16x1,5 ATEX plus BK LAPP SKINTOP K-M 16x1,5 ATEX plus BK

54115210

SKINTOP K-M 16x1,5 ATEX plus BK

LAPP

50

SKINTOP K-M 16x1,5 ATEX plus BK

SKINTOP® K-M ATEX plus

More details


Cable and wire entry systems > Cable gland

SKINTOP cabling

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $75.48
Unit price: $1.51

Quantity Price
50+$1.51
100+$1.49
200+$1.27
250+$1.22
350+$1.16
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


SKINTOP® K-M ATEX plus, metric plastic cable gland with high degree of protection, cold impact resistance, explosion-proof

Benefits

  • High degree of protection
  • Cold impact resistance
  • High strain relief
  • Wide, variable clamping ranges
  • Permanent vibration protection

Application range

  • Devices, machines and apparatus of enhanced safety protection type "e", dust ignition proof "t"
  • Equipment group II / Category 2G+1D
  • For mobile applications in offshore and marine industries
  • Chemical and petrochemical industry

Product Make-up

  • Metric connection thread acc. to DIN EN 60423
  • Basis for technical information DIN IEC 62444

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • Refer to the instruction leaflet for the installation dimensions and torques

Certifications

  • CE 0637 Ex II 2G
    Ex eb IIC Ex II 1D
    Ex ta IIIC
    IECEx IBE 13.0027X

Colour delivered

  • Black (RAL 9005), UV-resistant

Material

  • Body: special polyamide
    Seal: special elastomer
    O-ring: CR

Tests

  • DIN EN 60079-0
    DIN EN 60079-7
    DIN EN 60079-31

Protection rating

  • IP 68 - 10 bar

Temperature range

  • -20°C to +80°C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LAPP EN.pdf 58 Mbytes
54115210 SKINTOP K-M 16x1,5 ATEX plus BK 54115210 EN_54115220.pdf 431 Kbytes 54115210 SKINTOP K-M 16x1,5 ATEX plus BK 54115210 EN_54115220.pdf
