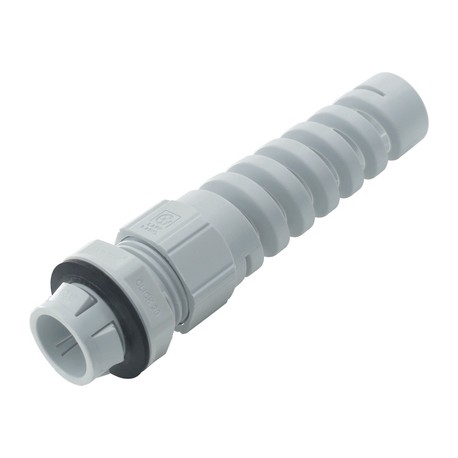

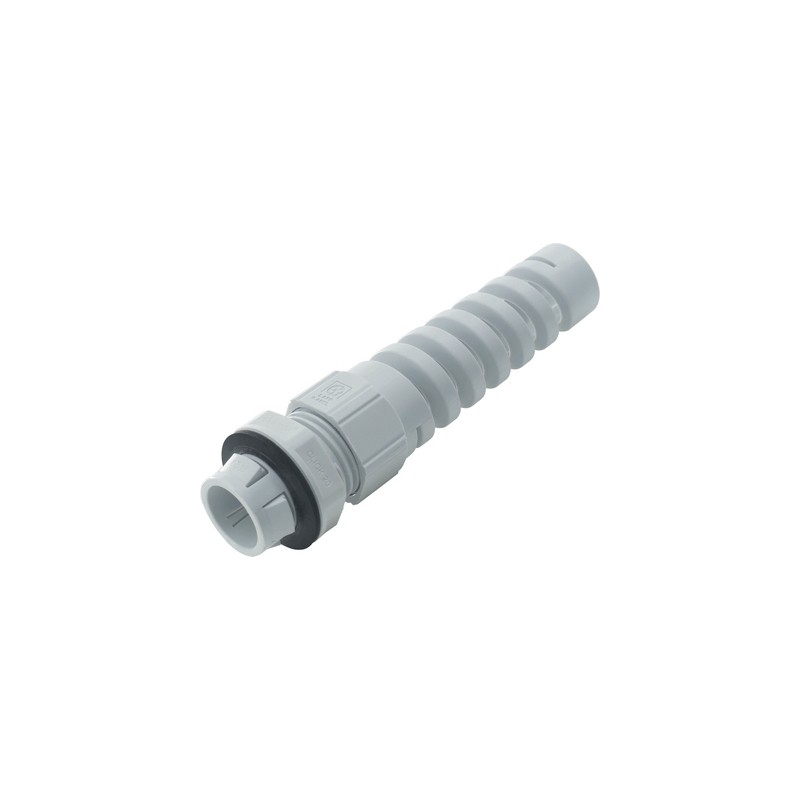

53112936 SKINTOP CLICK BS 12 RAL 9005 BK LAPP SKINTOP CLICK BS 12 RAL 9005 BK
53112936
SKINTOP CLICK BS 12 RAL 9005 BK
LAPP
50
SKINTOP CLICK BS 12 RAL 9005 BK
SKINTOP® CLICK BS
Cable and wire entry systems > Cable gland
SKINTOP cabling
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲SKINTOP® CLICK BS, bending protection with innovative CLICK system to protect flexible cables, no thread required, no counter nut
The most innovative cable insertion system in the market for a fast and highly flexible assembly. Simply click in - turn to the left - turn to the right - finished. The result: fixed, centred, strain-relieved fitting and maximum protection class in a few seconds.
Benefits
- Reliable bending protection for cable conservation and functional reliability
- Save up to 70% of the time with the innovative CLICK system
- No thread required
- To protect flexible cables
- Fewer parts, counter nut no longer needed
Application range
- Cables for electrical appliances and machinery that are moved under normal use must be protected against excessive bending as required in accordance with VDE 0700-1
- Robotics industry
- Moving machine parts
- Apparatus construction
- Light and sound applications
Norm references / Approvals
- UL File Nr. E79903
Included
- Included: disassembly tool
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Colour delivered
- Silver grey (RAL 7001)
Light grey (RAL 7035)
Black (RAL 9005), UV-resistant
Material
- Body: special polyamide
Seal: special elastomer
Protection rating
- IP 68 - 4 bar (M12)
IP 68 - 5 bar (M16 - M25)
IP 68 - 1 bar (M32)
Temperature range
- -20°C to +100°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 53112936 SKINTOP CLICK BS 12 RAL 9005 BK 53112936 EN_53112890.pdf | 513 Kbytes |
|
