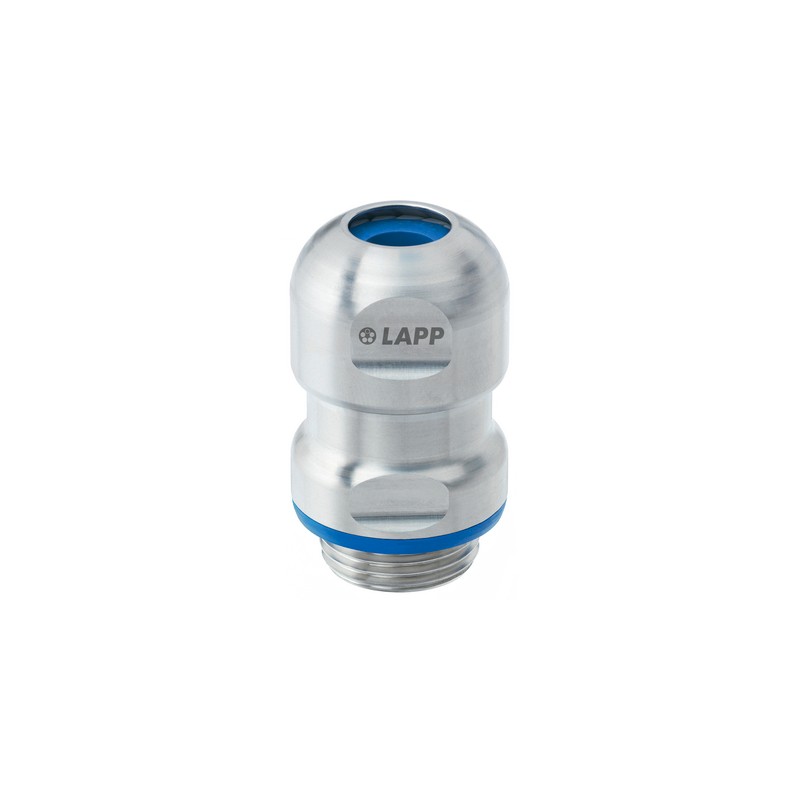

53105220 SKINTOP HYGIENIC-R M20X1,5 LAPP SKINTOP HYGIENIC-R M20X1,5

Benefits

• Hygienic Design for ideal cleaning results
• Smooth surfaces and no edges prevent the accumulation of fluids and formation of micro-organisms

Application range

• Food machinery, equipment and components
• For use inproduct zone
• Pharmaceutical industry

Norm references / Approvals

• EHEDG (TYPE EL Class I AUX)
  Hygienic design for machinery and components
• ECOLAB®
  Industry standard in the field of professional cleaning and disinfection in the food and beverage industry
• FDA 21 CFR 177.2600
  Special sealing element for food and beverage industry in North America
• DIN EN 1672-2
  Guideline for the design of machinery
• DIN EN ISO 14159
  Security of machinery – Hygienic requirements for the design of machinery
• NSF/ANSI 169
  Hygienic design for machinery and components

Product Make-up

• Material and shape provide an easy and safe cleaning
• By the blue coloring of the sealing material clearly distinguishable from foodstuffs
• One complete assembly is easily mounted from the outside
• Metric connection thread acc. to DIN EN 60423
• Basis for technical information DIN IEC 62444

Note

• Installation wrench for very high packing density on request

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000441
• ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000441
• ETIM 6.0 Class-Description: Cable screw gland

Certifications

• UL approval for M32x1,5 and M40x1,5 pending

Material

• Body: stainless steel - V4A (1.4404 / 316L)
  Insert: polyamide
  Sealing: special elastomer

Protection rating

• IP 68 - 10 bar
  IP 69
  NEMA Type 1, 2, 4x, 6, 12

Temperature range

• -20°C to +100°C
