53015320 SKINTOP STR PG 11 RAL 9005 BK LAPP SKINTOP STR PG 11 RAL 9005 BK
53015320
SKINTOP STR PG 11 RAL 9005 BK
LAPP
100
SKINTOP STR PG 11 RAL 9005 BK

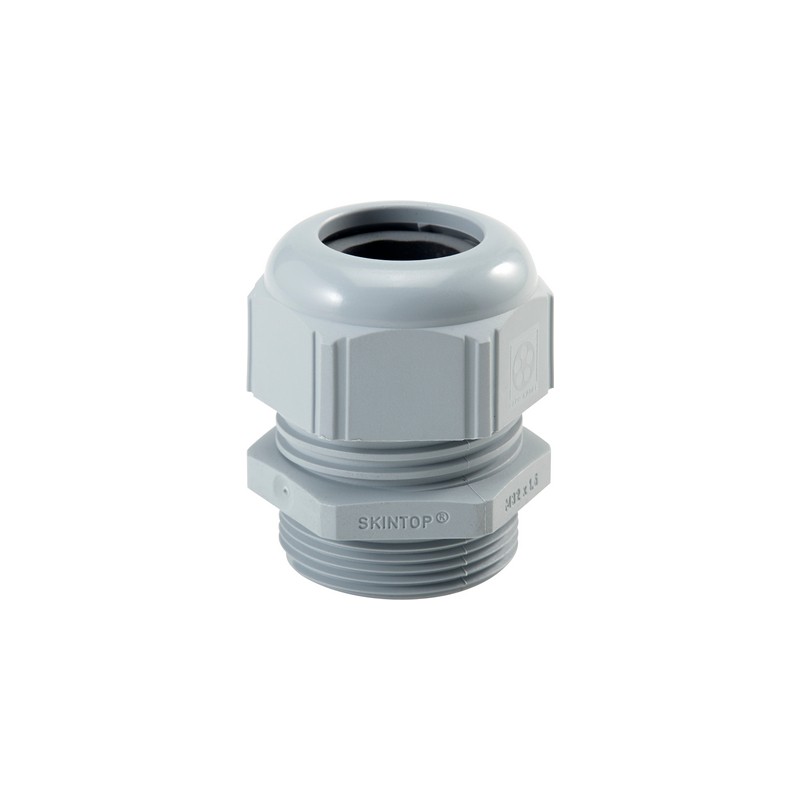

SKINTOP® STR
Cable and wire entry systems > Cable gland
SKINTOP cabling
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲SKINTOP® STR, increased oil-resistant polyamide cable gland with wide, variable clamping ranges and reducing seal insert
Benefits
- High oil-resistance for maximum reliability
- Permanent vibration protection
- Wide, variable clamping ranges
- Optimum strain relief
- Various accessories (e.g. multiple sealing inserts)
Application range
- With reducing seal insert, to seal cables with smaller outer diameters
Norm references / Approvals
- UL File Nr. E79903
Product Make-up
- PG connection thread acc. to DIN 40430
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Caution
- Refer to Appendix T21 for the installation dimensions and torques
Colour delivered
- Silver grey (RAL 7001)
Light grey (RAL 7035)
Black (RAL 9005), UV-resistant
Material
- Body: Polyamide
Seal: CR
Tests
- GGVS: TÜ.EGG.020-95
Protection rating
- IP 68 - 5 bar
- NEMA Type 1, 12
Temperature range
- Dynamic: -20°C to +100°C
- Fixed: -40°C to +100°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 53015320 SKINTOP STR PG 11 RAL 9005 BK 53015320 EN_53015390.pdf | 531 Kbytes |
|
