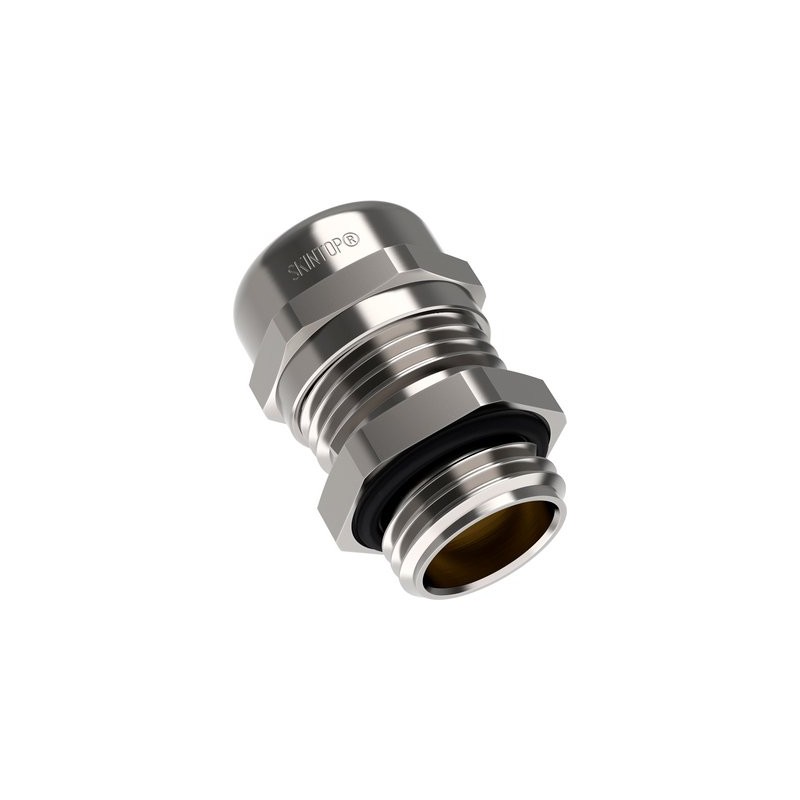

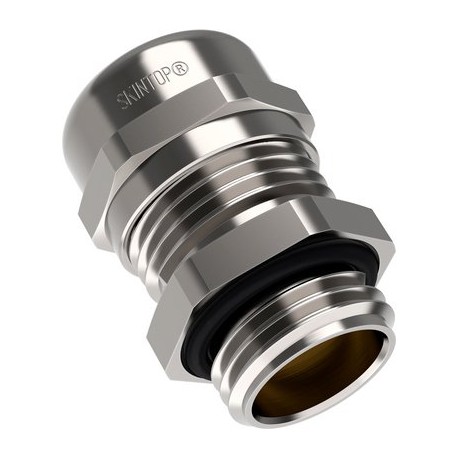

52110025 SKINTOP MS-M ATEX BRUSH 40x1,5 LAPP SKINTOP MS-M ATEX BRUSH 40x1,5

Benefits

• Faster and less complicated assembling than any other system
• Optimum, low-resistance 360° screen contact
• Simple cable adjustment
• Easy to uninstall
• Anti-static, safe, and impact-resistant at cold temperatures

Application range

• For EMC-compliant earthing of the copper braiding
• Chemical and petrochemical industry
• Plant engineering
• Equipment group II / Category 2G+1D
• Devices, machines and apparatus of enhanced safety protection type "e", dust ignition proof "t"

Product Make-up

• Metric connection thread acc. to DIN EN 60423
• Basis for technical information DIN IEC 62444

Note

• SKINDICHT® SHVE-M 20 x 1.5 ATEX design with EMC earthing sleeve to cover smaller cable clamping ranges
• SKINDICHT® SHVE-M 20x1,5 ATEX is not IECex certified

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000441
• ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000441
• ETIM 6.0 Class-Description: Cable screw gland

Caution

• Refer to the instruction leaflet for the installation dimensions and torques

Certifications

• CE 0637 Ex II 2G
  Ex eb IIC Ex II 1D
  Ex ta IIIC
  IECEx IBE 13.0026X

Material

• SKINTOP® MS-M ATEX BRUSH
  Body: nickel plated brass
  Insert: special polyamide
  EMV-Brush: brass
  Seal: special elastomer
  O-Ring: special elastomer
  SKINDICHT® SHVE-M ATEX
  Body: nickel plated brass
  Earthing sleeve: brass
  Seal: special elastomer
  O-Ring: special elastomer

Tests

• DIN EN 60079-0
  DIN EN 60079-7
  DIN EN 60079-31

Protection rating

• IP 68 - 10 bar

Temperature range

• SKINTOP® MS-M ATEX BRUSH
  -30°C to +90°C
  SKINDICHT® SHVE-M ATEX
  -20°C to +80°C
