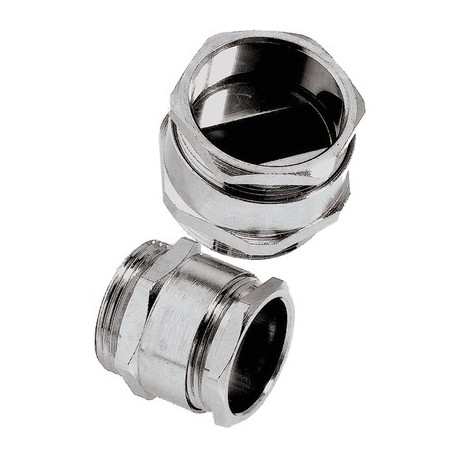

52107380 SKINDICHT SVF-M 63x1,5/48 LAPP SKINDICHT SVF-M 63x1,5/48
52107380
SKINDICHT SVF-M 63x1,5/48
LAPP
5
SKINDICHT SVF-M 63x1,5/48
SKINDICHT® SVF-M
Cable and wire entry systems > Cable gland
SKINDICHT cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info

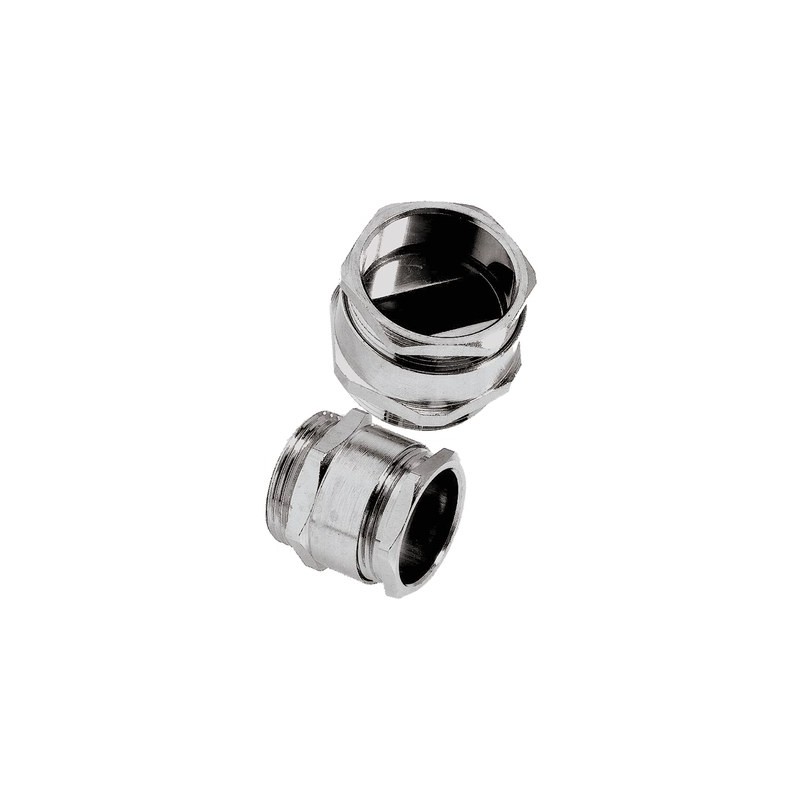

▲SKINDICHT® SVF-M, flat cable gland with automatically fitting lateral sealing lips, optimum strain relief
Benefits
- Lateral sealing lips fit automatically around various cable dimensions
- Cable-specific seal dimensions are no longer necessary
- Large opening allows clamping of up to two flat cables
- Optimum strain relief
- Tolerance
Application range
- For inserting flat cables
- Control cabinet manufacturing
- Conveyor systems
- Pumps
- Lifts
Product Make-up
- Metric connection thread acc. to DIN EN 60423
- Basis for technical information DIN IEC 62444
Note
- For suitable flat cables, refer to ÖLFLEX® LIFT F for indoor applications or ÖLFLEX® CRANE F for outdoor applications
- Counter nut to be used: SKINDICHT® SM-M
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Caution
- The installation dimensions
can be found in appendix T21
Material
- Body: nickel-plated brass
Special sealing insert: CR
Protection rating
- IP 54
Temperature range
- -30°C to +100°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 52107380 SKINDICHT SVF-M 63x1,5/48 52107380 EN_52107320.pdf | 429 Kbytes |
|
