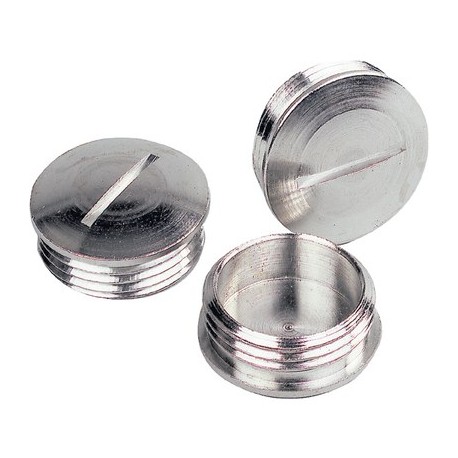

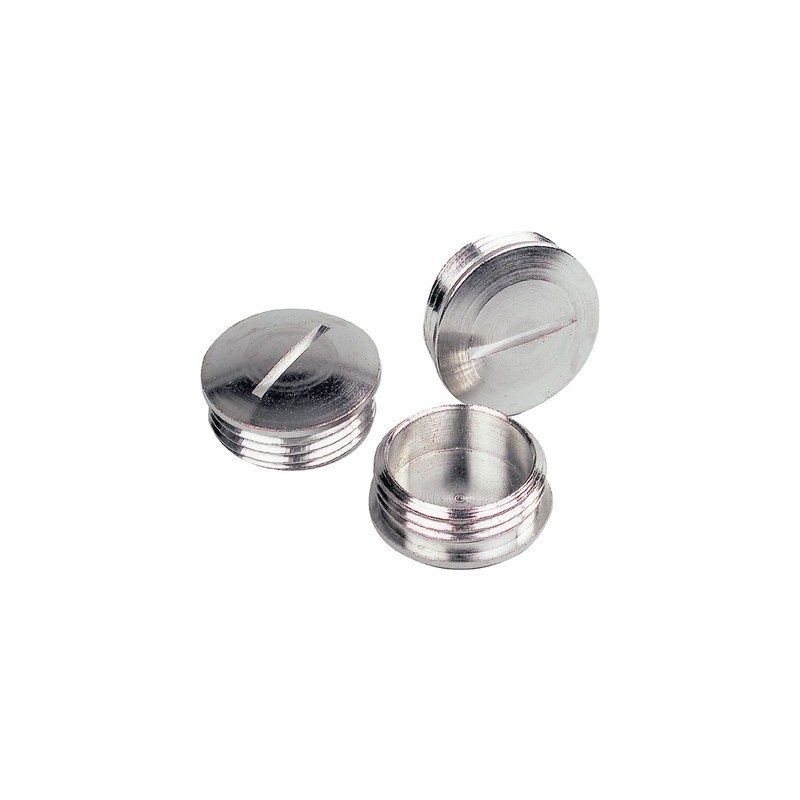

52103135 SKINDICHT BL M 25x1,5+O-Ring LAPP SKINDICHT BL-M 25x1,5 +O-Ring
52103135
SKINDICHT BL M 25x1,5+O-Ring
LAPP
100
SKINDICHT BL-M 25x1,5 +O-Ring
SKINDICHT® BL-M
Cable and wire entry systems > Plug for cable screw gland
SKINDICHT cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Benefits
- Withstands temperatures up to +200 °C.
- Simple assembly by using a slotted screwdriver.
- Article numbers ending in "LF" are lead-free product alternatives with the same product properties. "Lead-free" articles do not contain lead, which is currently still allowed to make up to four percent in copper alloys. It could be banned in the future according to the RoHS Directive.
Application range
- For closing an unoccupied metric threaded hole on the housing.
- Withstands high chemical and mechanical stress.
Product features
- Assembling with screwdriver
Norm references / Approvals
- UL File Nr. E79903
Product Make-up
- Metric connection thread acc. to DIN EN 60423
- Basis for technical information DIN IEC 62444
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000032
- ETIM 5.0 Class-Description: Plug for cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000032
- ETIM 6.0 Class-Description: Plug for cable screw gland
Certifications
- UL File E79903
On request
- Fitted with FKM O-ring (-20°C to +200°C)
Material
- Body: nickel-plated brass
O-ring: NBR
Protection rating
- IP 54
- IP 68 (with O-ring)
Temperature range
- With O-ring: -20°C to +100°C
Without O-ring: -60°C to +200°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 52103135 SKINDICHT BL M 25x1,5+O-Ring 52103135 EN_52103135.pdf | 678 Kbytes |
|
