52005540 SKINDICHT SVRE PG 9 LAPP SKINDICHT SVRE PG 9
52005540
SKINDICHT SVRE PG 9
LAPP
100
SKINDICHT SVRE PG 9
SKINDICHT® SVRE
Cable and wire entry systems > Cable gland
SKINDICHT cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info

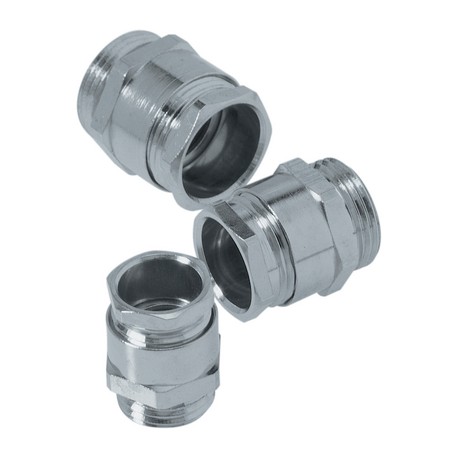

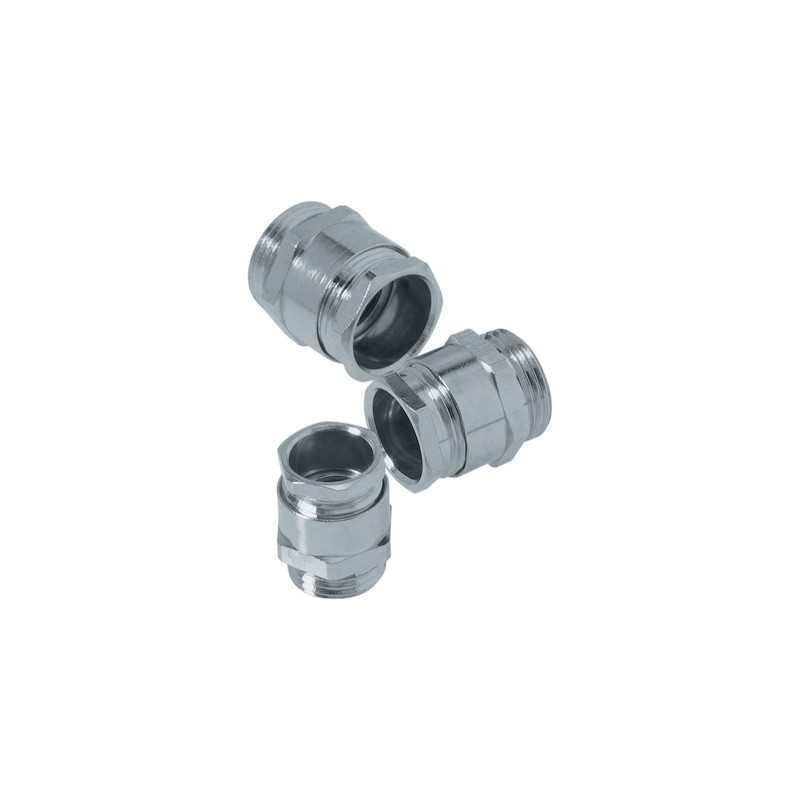

▲SKINDICHT® SVRE, PG cable gland with incised sealing ring and hexagonal fitting
Benefits
- With incised sealing ring for adjustment to several cable diameters
- Fewer sizes need to be kept in stock
Application range
- Brass cable gland with hexagonal fitting and variable incised sealing ring.
Product Make-up
- PG connection thread
Note
- Refer to SKINDICHT® EV for additional accessories
- Counter nut to be used: SKINDICHT® SM
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Caution
- The installation dimensions
can be found in appendix T21
On request
- Available with long connection thread
Available with PG 11 to 36 with FKM incised ring
Material
- Body: nickel-plated brass
Incised seal: CR
Protection rating
- IP 54
Temperature range
- -20°C to +80°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 52005540 SKINDICHT SVRE PG 9 52005540 EN_52005540.pdf | 297 Kbytes |
|
