52004230 SKINDICHT SK PG 9 LAPP SKINDICHT SK PG 9
52004230
SKINDICHT SK PG 9
LAPP
50
SKINDICHT SK PG 9
SKINDICHT® SK
Cable and wire entry systems > Cable gland
SKINDICHT cabling
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info

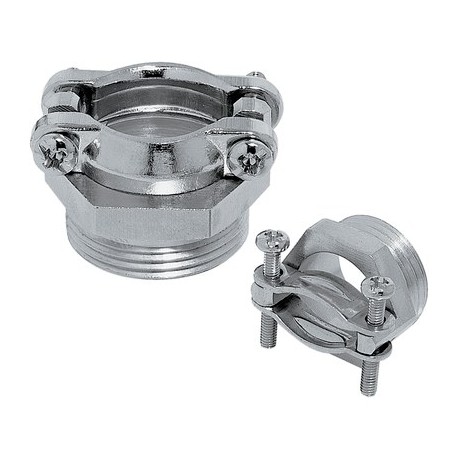

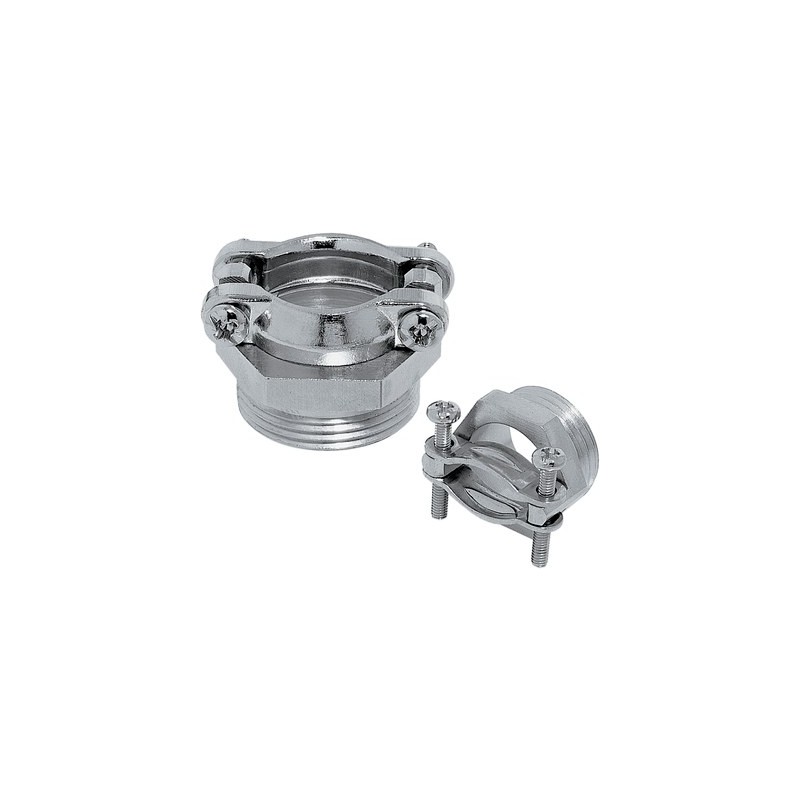

▲SKINDICHT® SK,PG brass cable gland, wide clamping range & reliable strain relief, for cable gland with solid brass saddle clamps
Benefits
- Reliable strain relief
- Wide clamping range
Application range
- Cable gland with two solid brass saddle clamps
- Connectors
- Switches
- Control panels
Product Make-up
- PG connection thread
Note
- Counter nut to be used: SKINDICHT® SM
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Caution
- The installation dimensions
can be found in appendix T21
On request
- Available with long connection thread
Material
- Body: nickel-plated brass
Protection rating
- IP 20
Temperature range
- -20°C up to +200°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 52004230 SKINDICHT SK PG 9 52004230 EN_52004230.pdf | 298 Kbytes |
|
