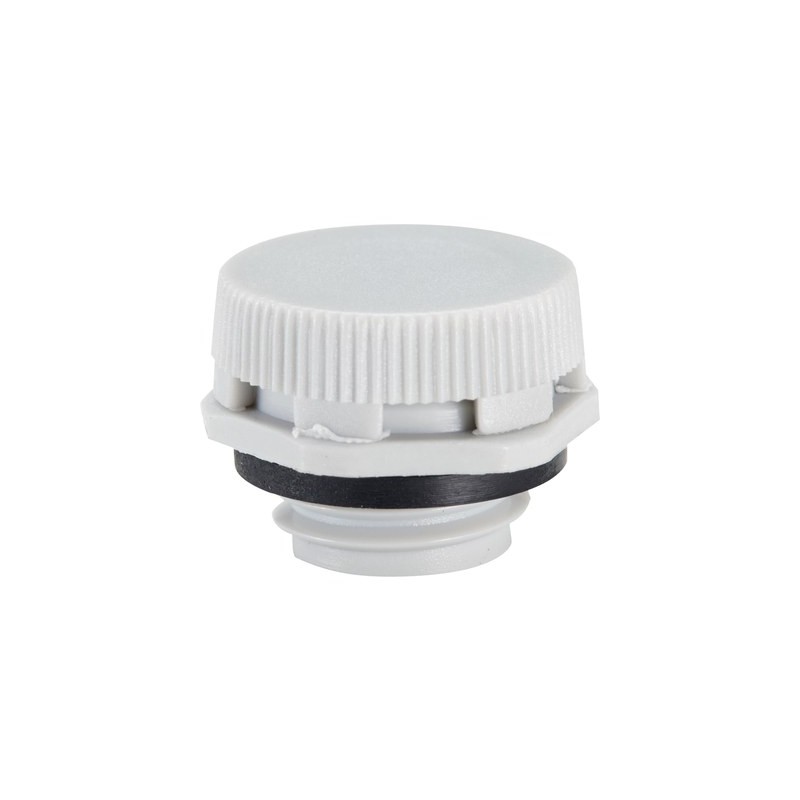

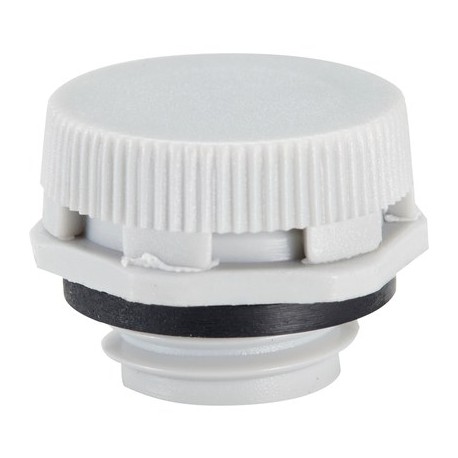

51730202 SKINDICHT VENT 12x1,5 LGY LAPP SKINDICHT VENT 12x1,5 LGY
51730202
SKINDICHT VENT 12x1,5 LGY
LAPP
25
SKINDICHT VENT 12x1,5 LGY
SKINDICHT
Cable and wire entry systems > Cable gland
SKINDICHT cabling
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
More info
▲SKINDICHT® VENT PA6, made from plastic, metric pressure compensation element and closure element with lower space requirement and high air flow
Breathable pressure compensation element with membrane technology
Benefits
- Ventilation system for housing
- Formation of condensation in electronic housings is prevented
- Pressure compensation elements guarantee a trouble-free and maintenance-free operation
Application range
- Lighting engineering
- Railway applications
- Weather station
- Housing and distribution boxes
- Manufacturing of control cabinets and equipment
Product features
- Closure element and a pressure equalization in one system
- Lower space requirement
- High air flow
Norm references / Approvals
- Optionally approved acc. to UL 508 A
Product Make-up
- Air flow rates: 100mbar=0,8l/min - Standard versionAir flow rates: 100mbar=3,5l/min - UL version
Note
- Refer to data sheet for more details
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Certifications
- Metric thread acc. to EN 60423
Note
- Membrane: Acryl - copolymere
Colour delivered
- Light grey (RAL 7035)
- Black (RAL 9005), UV-resistant
Material
- Polyamide 6 - Standard version / UL 94 V2
Polyamide 66 - UL Version / UL 94 V0 - Flat sealing NBR - Standard version
O-Ring NBR - UL version
Protection rating
- Standard: IP66 / IP68 / IP69
UL: IP66 / IP67 / IP69
Temperature range
- -20°C to +100°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 51730202 SKINDICHT VENT 12x1,5 LGY 51730202 EN_51730201.pdf | 573 Kbytes |
|
