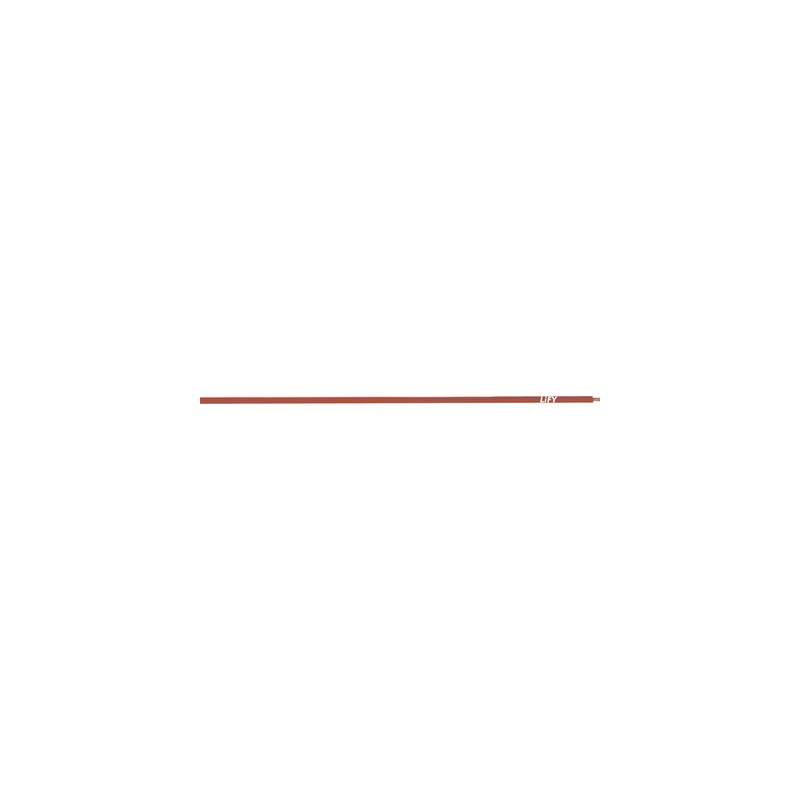

4560076 LiFY 1X6 RD LAPP LiFY 1X6 RD
4560076
LiFY 1X6 RD
LAPP
50 m.
LiFY 1X6 RD
LiFY
Single cores
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲LIFY, power and control cable, PVC special single core, extra-finely stranded/extremely flexible measuring cable, protected for low voltage, max. +70 °C
Extremely flexible / Extra-finely stranded
Benefits
- Very soft PVC insulation that is flexible at low temperatures
Application range
- For use in and on mobile equipment
- For measuring assemblies in technical training sessions, education and electric laboratories
Norm references / Approvals
- Based on VDE 0812 and VDE 0250-1
Product Make-up
- Stranded copper wire
- Core insulation: Based on PVC
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000993
- ETIM 5.0 Class-Description: Single core cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000993
- ETIM 6.0 Class-Description: Single core cable
Conductor stranding
- Extra-finely stranded IEC conductor class 6: 0.07 mm
Nominal voltage
- Highly flexible LiFY cores:
up to 1.0 mm²: U0/U: 300/500 V,
from 1.5 mm²: U0/U: 450/750 V
Temperature range
- Flexible use: -15°C to +70°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 4560076 LiFY 1X6 RD 4560076 EN_4560026S.pdf | 502 Kbytes |
|
