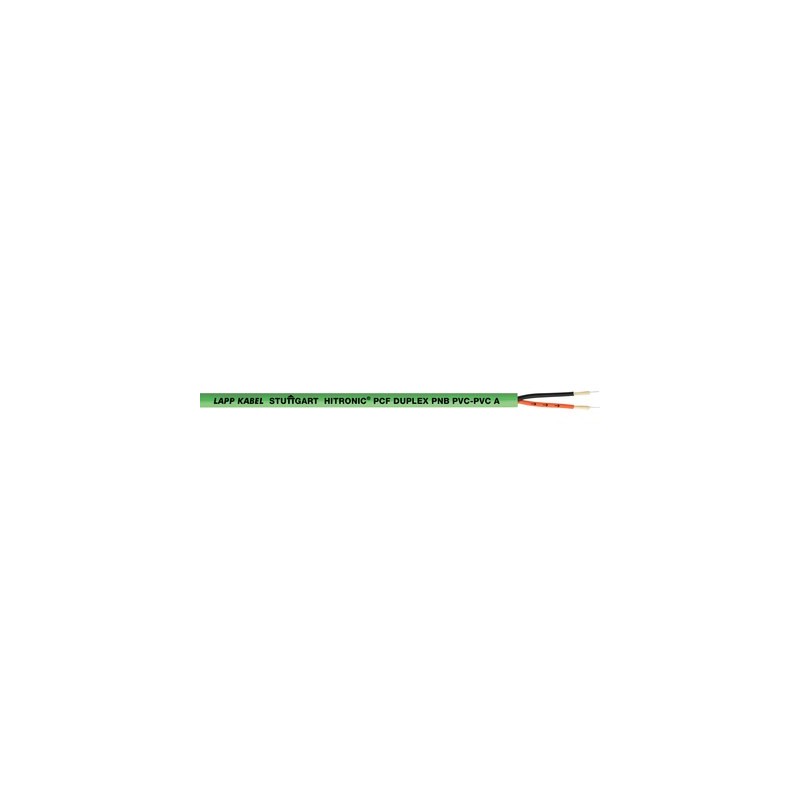

28352702 HITRONIC PCF DUPLEX FD PNC PVC-PVC LAPP HITRONIC PCF DUPLEX FD PNC PVC-PVC

Benefits

• Optical data transmisson up to 500m
• Easy to handle
• No intereference by external fields
• No grounding problems
• Suitable for direct connector assembly

Application range

• PCF DUPLEX cabels for optical signal transmission in industrial applications
• PROFINET / Industrial Ethernet
• At 100 Mbit/s: max 100 m cable length
• PROFINET type B:
  for fixed laying
• PROFINET type C:
  for flexible applications (power chains)

Product features

• Cable version with PVC outer sheath:
  for standard applications in industrial environments
• Cable version with PUR outer sheath:
  for high mechanical or chemical stress in industrial environments
• PNB - PROFINET-Type B
• PNC - PROFINET-Type C
• FD - Highly flexible (power chains)

Norm references / Approvals

• 28055702: with c(UL)us certification
  (OFNG 75°C)
• PUR compound: oil resistant acc. to IEC 60811-2-1 und DIN EN 50363-10-2

Product Make-up

• Colour-coded, tight-buffered PCF sub-cable with PVC sheath
• Sub cable outer diameter: 2.2mm
• Aramid yarns as strain relief
• Outer sheath material PUR or PVC (see article description)
• Outer sheath colour: green (RAL 6018)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000034
• ETIM 5.0 Class-Description: Fibre optic cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000034
• ETIM 6.0 Class-Description: Fibre optic cable

Dimensions

• Buffered fibre: 0.5mm
  Single cable: 2.2 mm
• Cable: see table

Core identification code

• Black, orange (with arrow printing)

Fibre type

• PCF - K200/230
• PCF - Polymer Cladded Fibre

Minimum bending radius

• see data sheet

Standard designation

• J-V(ZN)YY 2K200/230
  J-V(ZN)Y(ZN)11Y 2K200/230 flex
  J-V(ZN)Y(ZN)Y 2K200/230 flex

Optical fibre type

• Core material: glass
• Cladding material: fluoropolymers

Permissible tensile force

• see data sheet

Temperature range

• See data sheet
